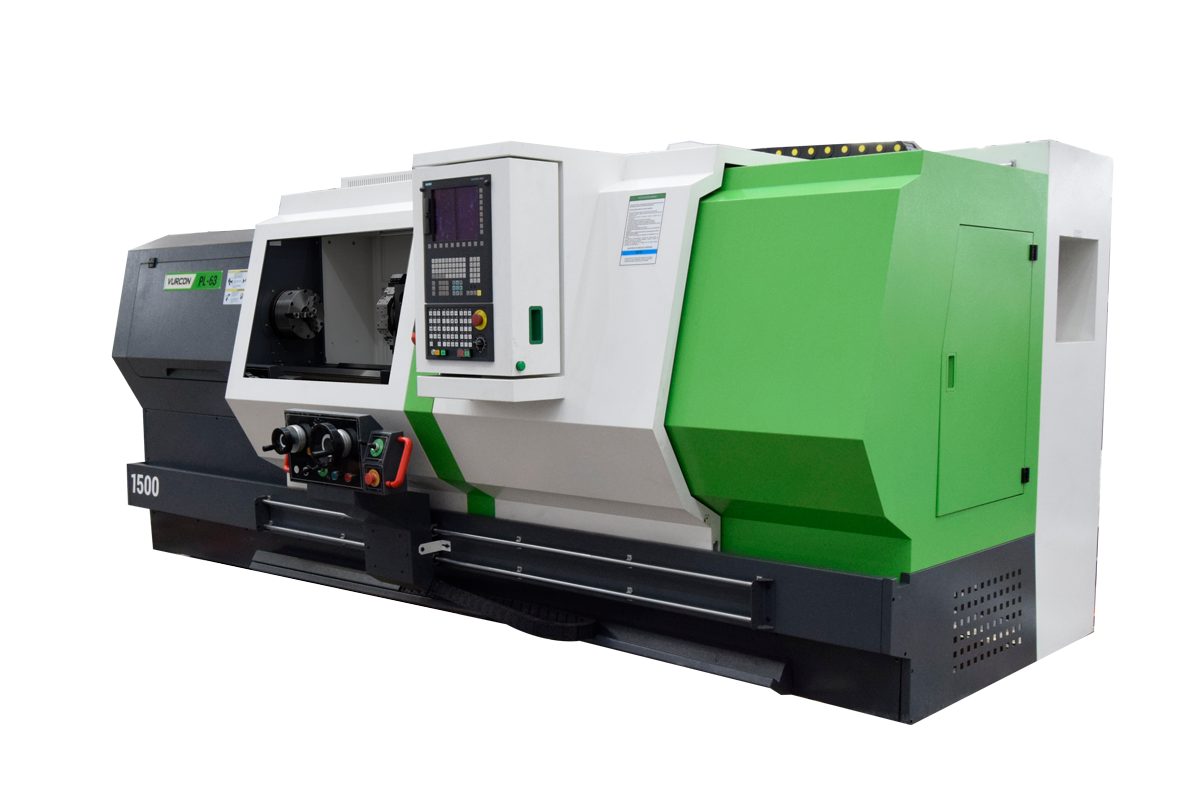

Centre lathe Vurcon PL-80 × 1500
Heavy-duty centre lathe with Ø800 mm swing and Ø98 mm bar capacity, with a 3-range gearbox and 15 kW.
- X/Z travels
- X 420 · Z 1,350 mm
- Spindle
- 21.5-1,200 rpm A2-11 · 15 kW
- Swing · max. workpiece
- Ø 800 mm · turning Ø 800 × 1,350 mm
- Turret
- 8 positions (electronic)
- Weight
- 5,500 kg
- CNC control
FAGOR 8060 Elite T-ICU
We reply within 24 working hours.
Technical data
Select a section to see the details:
| Speed | Taper | Power (100 % / 40 % DC) | Torque (100 % / 40 % DC) | Availability |
|---|---|---|---|---|
| 21.5-1,200 rpm Most common | A2-11 | 15 kW | Standard · automatic 3-range gearbox · spindle bore Ø 104/130 mm |
Interference envelope depending on axis position and table type: check that your part fits before requesting a quotation.
| Swing over bed | Ø 800 mm |
|---|---|
| Swing over cross slide | Ø 500 mm |
| Distance between centres | 1,500 mm |
| Max. turning | Ø 800 × 1,350 mm |
| Bar capacity | Ø 98 mm |
| Horizontal turret | 8 positions (electronic) · 32 × 32 mm · internal tools Ø32 |
|---|---|
| Optional | 4-position horizontal turret, 6-position vertical turret or Multifix-type quick-change system |
| Rapid traverse X/Z (m/min) | 6 / 12 |
|---|---|
| X / Z travels | 420 / 1,350 mm |
| Distance between guideways X/Z | 300 / 600 mm |
| Tailstock | Ø 150 mm · travel 250 mm · MT6 (manual; hydraulic optional) |
| CNC control | FAGOR 8060 Elite T-ICU (optional: FANUC 0i-TF Plus with Manual Guide i or SIEMENS 828D with ShopTurn) |
| Dimensions (L × W × H) | 4,307 × 2,040 × 1,855 mm |
Data from the manufacturer's catalogue; the final configuration is confirmed in the quotation.
Description
The Vurcon PL-80 × 1500 is a CNC flat-bed lathe with 1,500 mm between centres. It swings Ø 800 mm over the bed and Ø 500 mm over the cross slide, turns up to Ø 800 × 1,350 mm and takes bars up to Ø 98 mm. The A2-11 spindle runs at 21.5-1,200 rpm with 15 kW. Automatic 3-range gearbox with electronic variable-speed drive. It weighs 5,500 kg.
What it is used for
- Shafts and medium-to-long parts for machinery, hydraulics and transmissions.
- Large-diameter parts, up to Ø800 mm swing.
- Heavy-duty maintenance: steelmaking, paper, shipbuilding and energy.
Standard equipment
- FAGOR 8060 Elite T-ICU control.
- 8-position (electronic) turret and 3-jaw Ø 325 mm chuck.
- Manual tailstock with Ø 150 mm quill, fixed steady rest 120-350 mm and travelling steady rest 20-140 mm.
- Manual handwheels, lubrication, coolant, removable swarf tray and full enclosure.
Options include FANUC 0i-TF Plus or SIEMENS 828D control, hydraulic chuck and tailstock, swarf conveyor and air conditioning for the electrical cabinet. The PL-80 series is also available with 1,000, 2,000, 3,000 and 4,000 mm between centres.
Vurcon is the CNC machinery brand of Ferrotall Group. Ferrotall takes care of sales, transport, commissioning and training at your workshop, with its own service engineers and spare parts in Spain. Ask us for a quote with the configuration you need.
