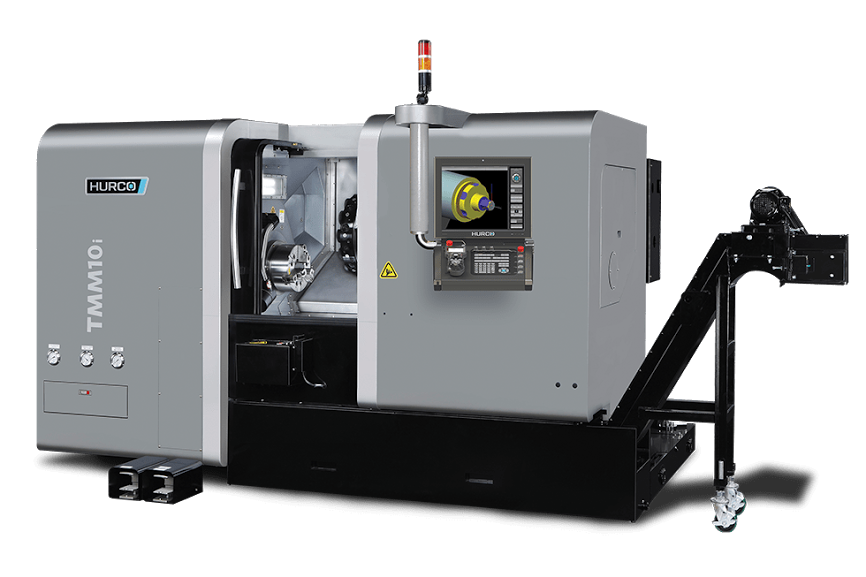

CNC lathe Hurco TM 10Mi
CNC lathe with a 3,000 rpm spindle, a 254 mm chuck and live tooling: turning and milling in a single machine, programmed in WinMax.
Ref. Hurco TMM10i
- X/Z travels
- 250 · 790 mm
- Spindle
- 3,000 rpm · chuck 254 mm · 520 Nm
- Swing · max. workpiece
- Ø 582 over bed · turning Ø 295 mm
- Turret
- 12 VDI 40 stations · live tools 5,000 rpm
- Weight
- 5,450 kg
- CNC control
Hurco WinMax · MAX5
We reply within 24 working hours.
Technical data
Select a section to see the details:
| Speed | Taper | Power (100 % / 40 % DC) | Torque (100 % / 40 % DC) | Availability |
|---|---|---|---|---|
| 3,000 rpm Most common | chuck 254 mm · bar capacity Ø 81 mm | 40 kW | 520 Nm | Standard |
Interference envelope depending on axis position and table type: check that your part fits before requesting a quotation.
| Max. turning Ø | Ø 295 mm |
|---|---|
| Swing over bed | Ø 582 mm |
| Swing over cross slide | Ø 402 mm |
| Bar capacity (draw tube) | Ø 81 mm |
| VDI 40 turret/ DIN 1809 | 12 stations · boring bar max. Ø 40 mm · shank 25 × 25 mm |
|---|---|
| Live tooling | 5,000 rpm · 7.4 kW · 47 Nm |
| Rapid traverse X/Z (m/min) | 30 / 30 |
|---|---|
| CNC control | Hurco MAX5 with WinMax: conversational programming at the machine and ISO (NC) code |
| Space required (L × W × H, doors open, including control and conveyor) | 5,008 × 2,910 × 2,233 mm |
| X/Z axis travel | 250x750 |
|---|---|
| Max. swing over carriage | 402 |
| Swing over bed | 582 |
| Distance between centres | 695 |
| Spindle taper | A2 - 8 |
| Spindle motor | 18 |
| Spindle speed | 3.000 |
| Chuck size | 10 |
| Bar capacity | 78 |
| Rapid traverse X/Z | 19/ 24 |
| No. of tools | 12 |
| Index time | 0.31/ 0.82 |
| Weight | 5.000 |
| Machine footprint (L x W x H) | 5.311x3.180x2.169 |
Data from the manufacturer's catalogue; the final configuration is confirmed in the quotation.
Automation options
Ready to be automated from day one or whenever you need it: more spindle hours without an operator and a lower cost per part.
BarsMulti3000 short-bar feederContinuous bar feeding to produce runs without interruptions.
RobotProCobots: loading and unloading with a collaborative robotFeeds the machine without an operator to extend shifts and run unattended. The robot is programmed from the MAX5 control itself (Automation Job Manager), with no need to program on the robot.
✓ ProFeeder Cart / Tray with UR10e or EasyDesk 20 | 30 with UR20 / UR30 · Schunk gripper for parts up to 15 kg
Hurco also offers an open interface for integrating third-party robots and automation systems (AMF, Erowa, Lang Technik, Robojob, Universal Robots…). Please confirm the configuration for this model with Ferrotall.
Description

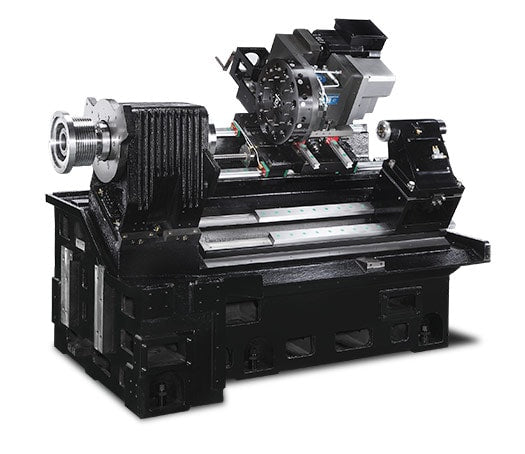

The Hurco TMM 3-axis lathe series consists of true slant-bed lathes equipped with live tooling. These lathes are the perfect solution for small to medium production runs that require turning, milling and drilling operations. Save time with their exceptional setup, without losing accuracy thanks to the automatic readjustment system.
Ferrotall service
- Installation and training Commissioning in your workshop and operator training by our technical team.
- In-house technical service Service team with specialist technicians and spare parts to keep your machine producing.
- Application advice We help you choose the machine and equipment to suit your parts and production.
- More than 45 years Machine tool distributor based in Monforte del Cid (Alicante).
