HEDER
Heder RE-700 lathe
- Swing over bed
- 700
- Distance between centres
- 2000
- Spindle speed
- 12-1000
- Weight
- 2750
We reply within 24 working hours.
Technical data sheet
General data
| Model | RE-700 |
|---|
Headstock and spindle
| Spindle bore | 82 |
|---|---|
| rpm | 12-1000 |
Turning
| Distance between centres | 2000 |
|---|---|
| Swing over bed | 700 |
| Swing in gap | 950 |
| Swing over cross slide | 465 |
| Chuck | Jaw chuck |
Dimensions, weight and connection
| Weight | 2750 |
|---|
Other data
| Bed width | 460 |
|---|---|
| Steady rest | Steady rest on bed |
Data from our purchase record, subject to verification. Please confirm any important figure with us before purchase or come and see the machine.
Description and equipment
Heder RE-700 engine lathe
Conventional gap-bed engine lathe, suitable for maintenance, repair and one-off or short-run part production workshops. With a 700 mm swing over bed, 950 mm in the gap and 2,000 mm between centres, it covers medium-sized parts such as shafts, pulleys, flanges, bushings and spare parts.
Key strengths
It is a heavily built machine for its size, weighing 2,750 kg with a 460 mm wide bed, which gives stability on roughing passes. The gap allows discs and flanges of larger diameter than the nominal swing to be turned, and the 82 mm spindle bore makes it easier to work with through bars and tubes.
Configuration of this unit

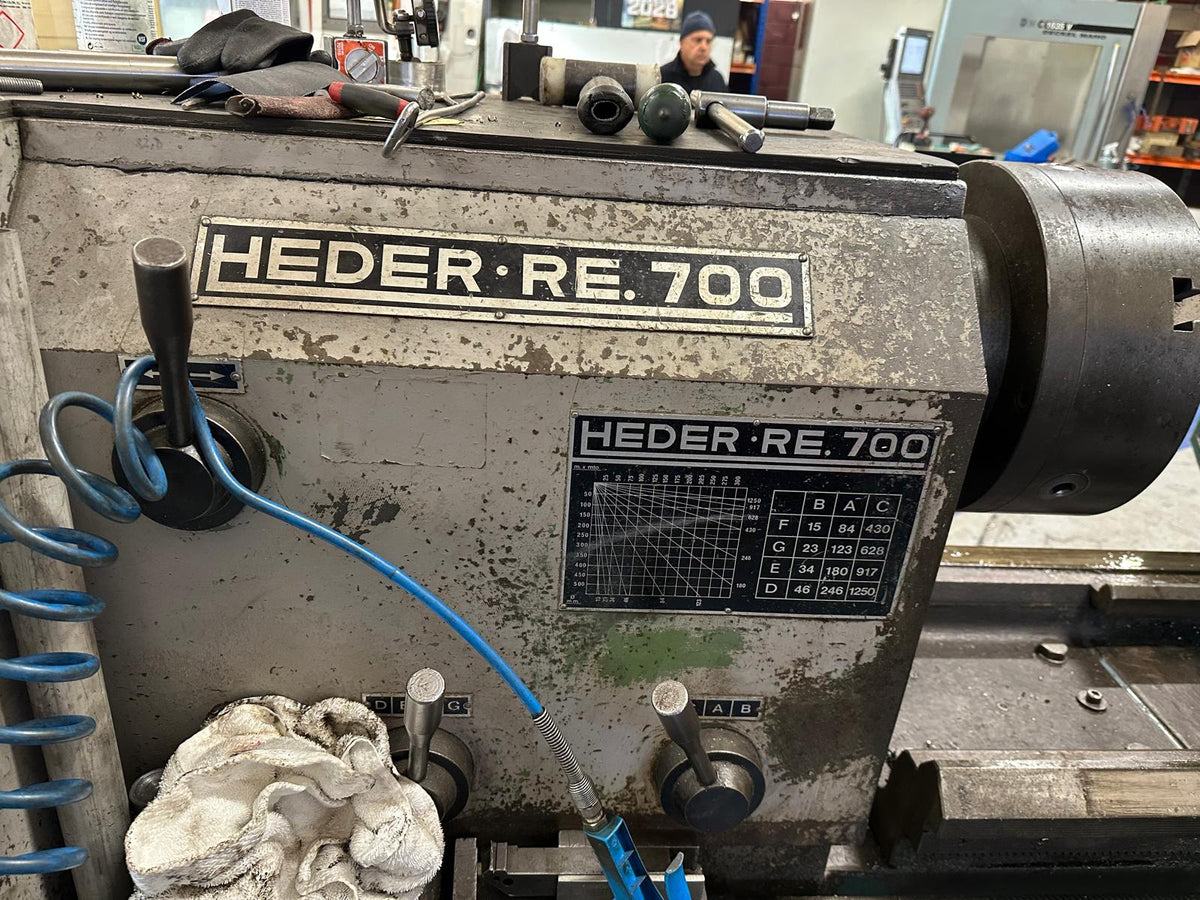

- Model: Heder RE-700 (labelled on the headstock, photo 4)
- Distance between centres: 2,000 mm
- Swing over bed: 700 mm
- Swing in gap: 950 mm
- Swing over cross slide: 465 mm
- Spindle bore: 82 mm
- Bed width: 460 mm
- Headstock speeds: 12–1,000 rpm

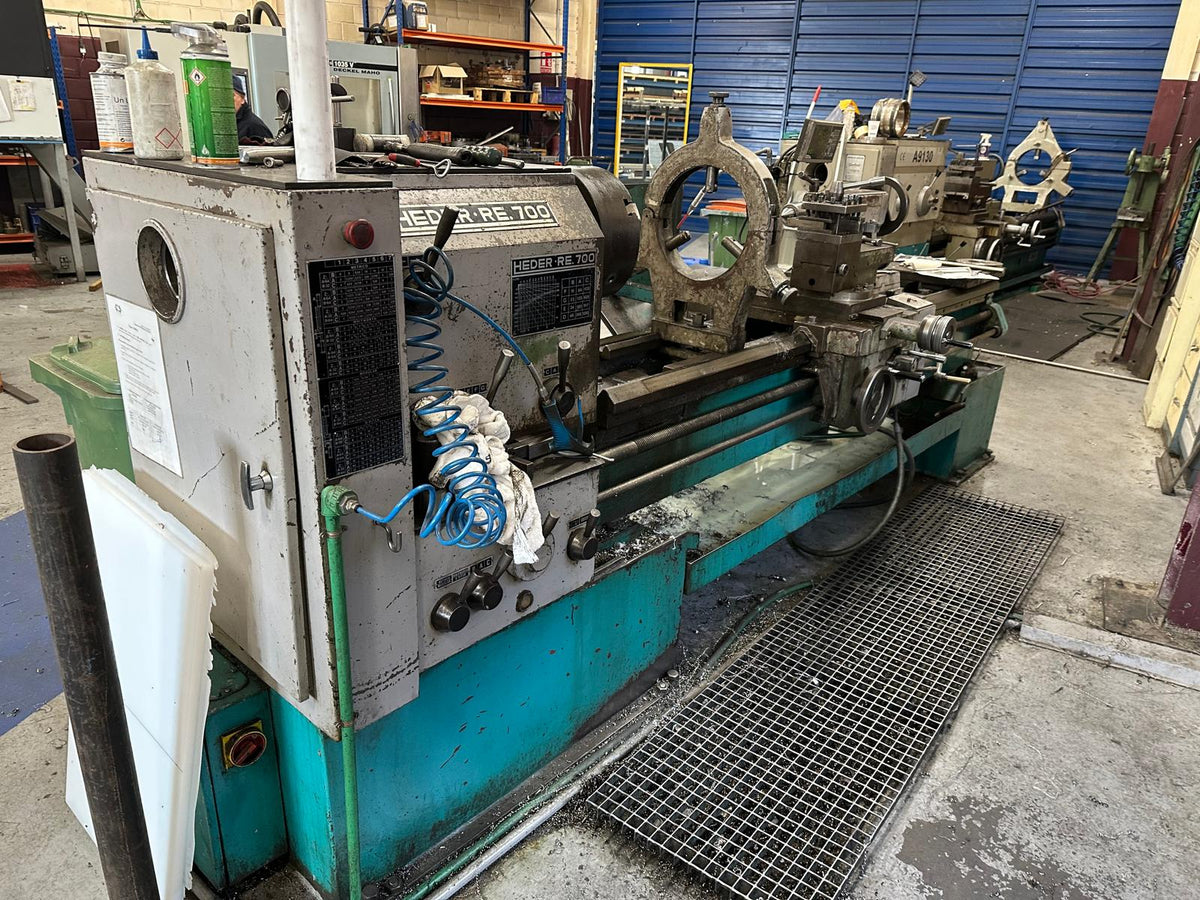

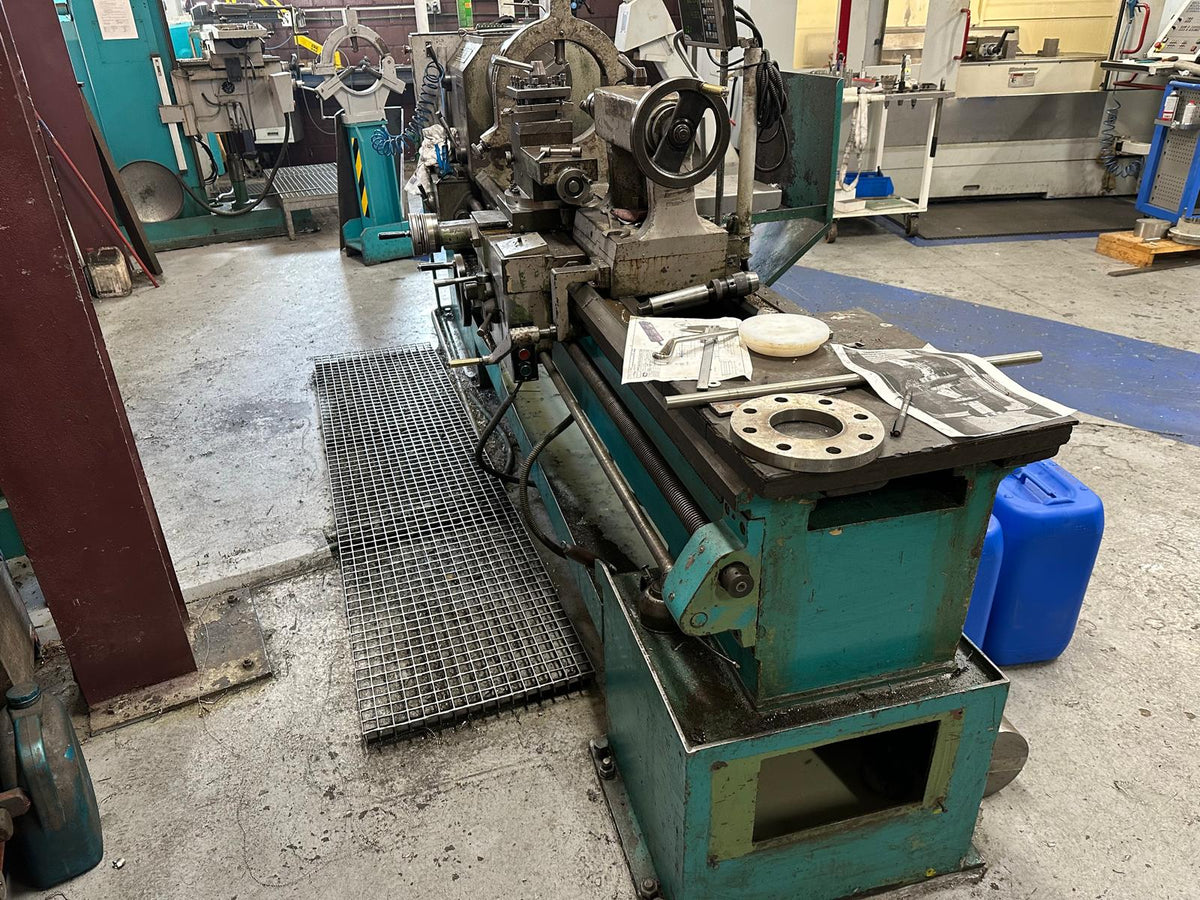

- Steady rest mounted on the bed (photos 1 and 3)

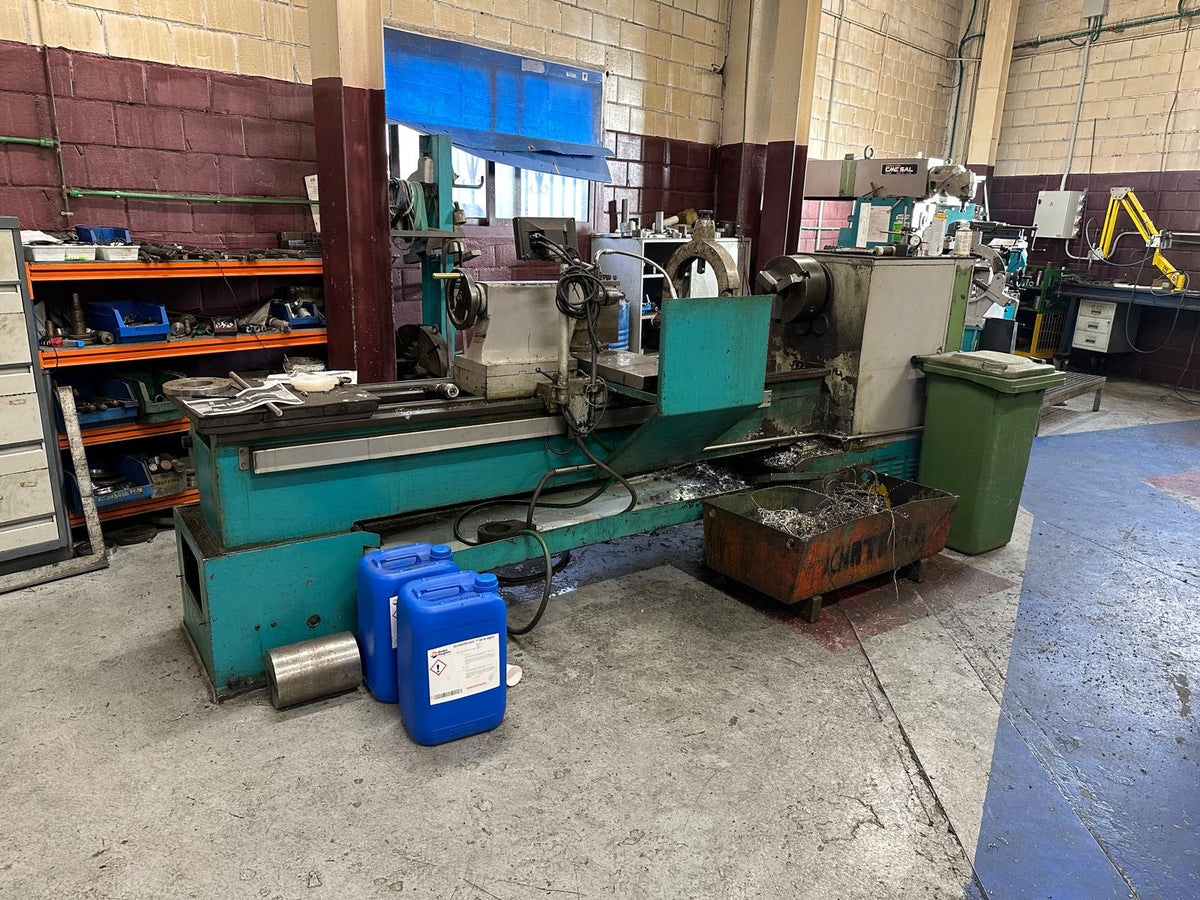

- Jaw chuck (photo 4)
- Weight: 2,750 kg
Typical applications
Repair of shafts and pulleys, threading, manufacture of bushings and flanges, fabrication and industrial maintenance work, and turner training.
See it at Ferrotall
The machine is at our premises in Monforte del Cid (Alicante), where you can visit it; contact us to see it running or to receive a video. Our own technical service takes care of transport, installation and commissioning.
Frequently asked questions
What diameter can the Heder RE-700 turn?
According to our data sheet, it takes 700 mm in diameter over the bed, 950 mm in the gap area and 465 mm over the cross slide, with 2,000 mm between centres. The gap is useful for flanges, pulleys or short large-diameter discs that would not fit over the bed.
What is the gap on an engine lathe for?
The gap is a removable or recessed section of the bed next to the headstock. When it is removed, more free height is available and short parts with a diameter greater than the nominal swing, such as discs, flanges or handwheels, can be turned without having to use a larger lathe.
What accessories can be seen in the photos of this lathe?
The photos show a steady rest mounted on the bed, used to support long shafts and prevent vibration, and a jaw chuck on the headstock. We recommend asking us which equipment is exactly included before purchase, as it is not listed in the technical data sheet.
Visit, transport and commissioning
- See it running Visit it at our facilities or ask us for a video of the machine under power.
- Transport We handle dismantling, loading and transport to your workshop.
- Commissioning Installation, levelling and commissioning by our technical service.
- More than 45 years Used machinery trading backed by our technical service.
Request a quote
Heder RE-700 lathe · Ref. 062970
