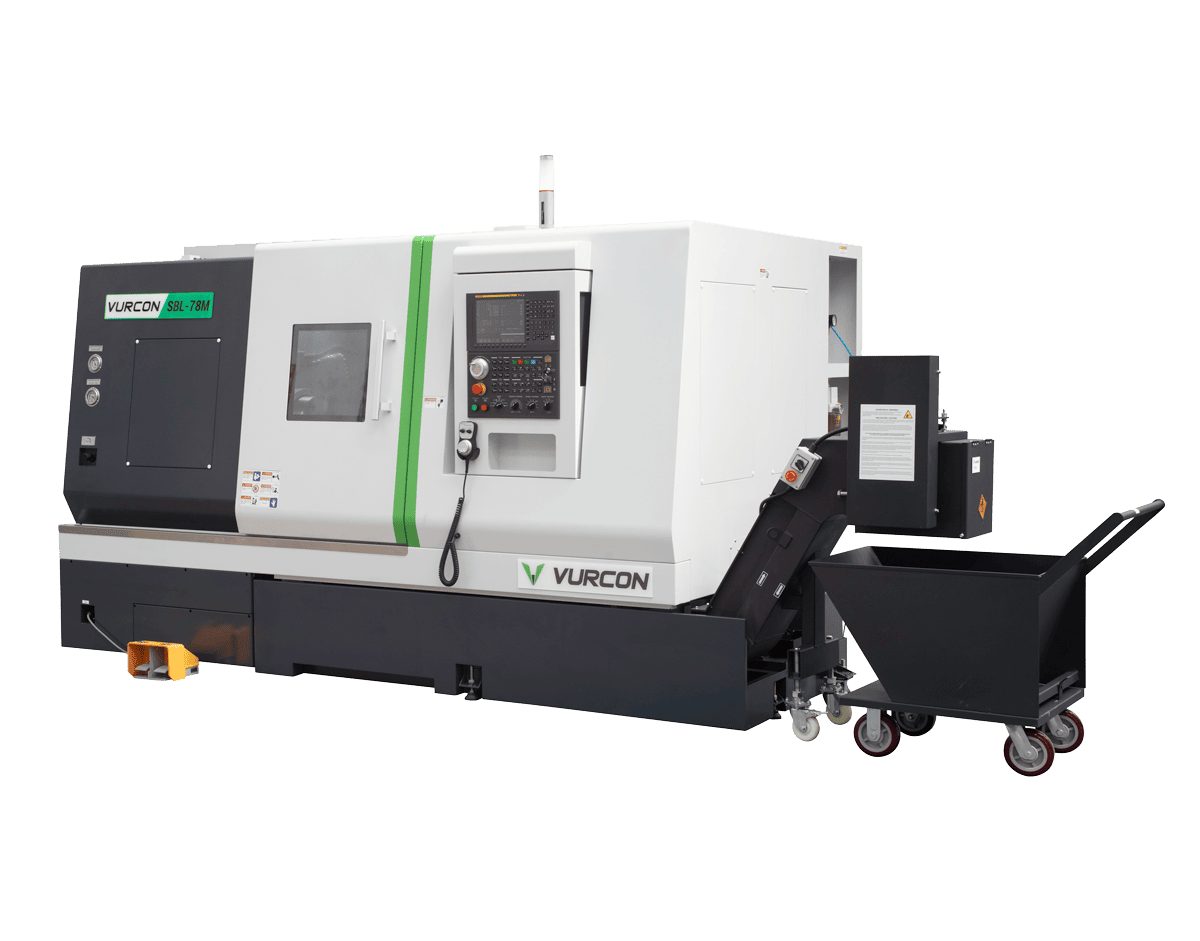

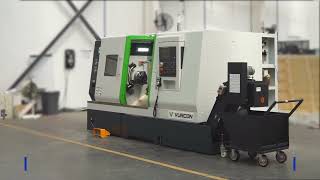

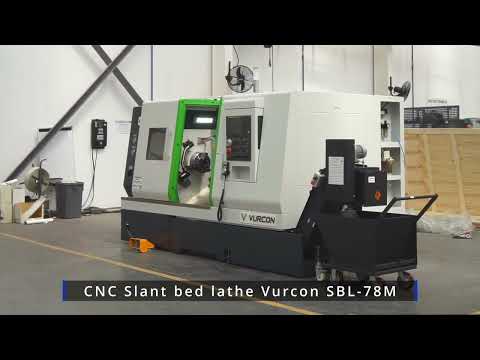

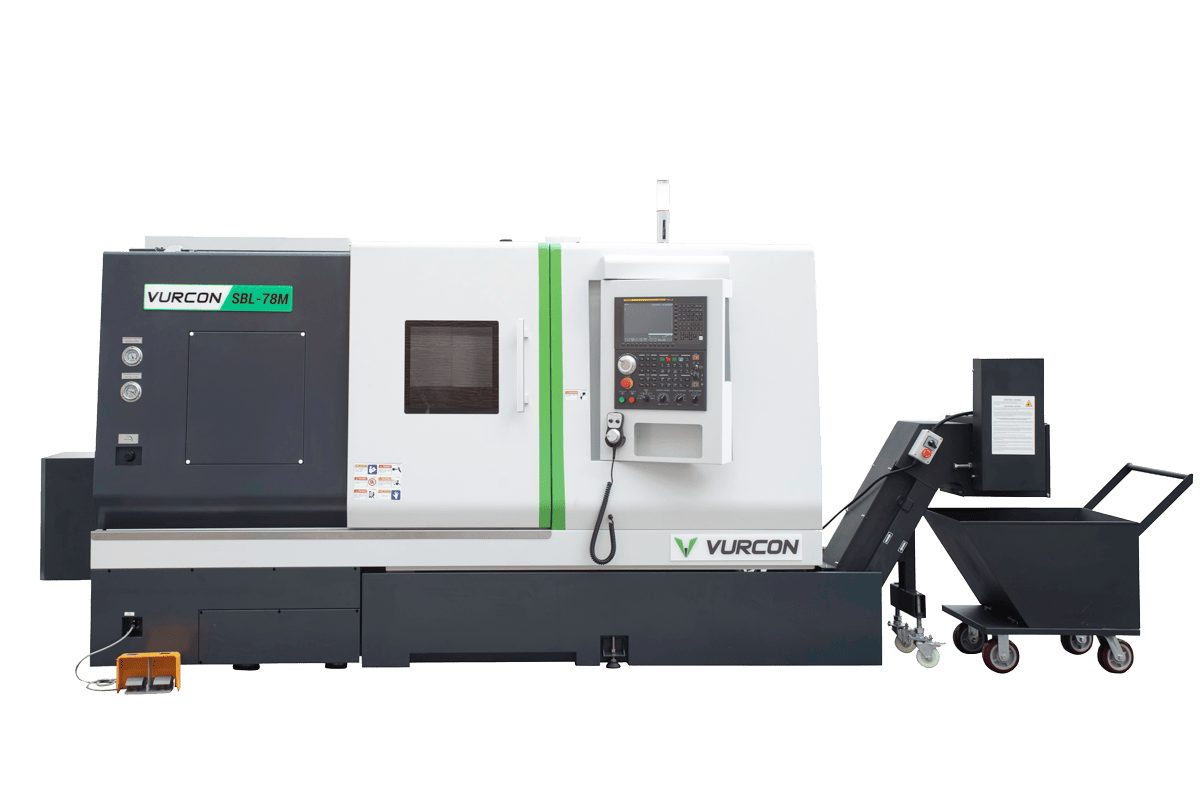

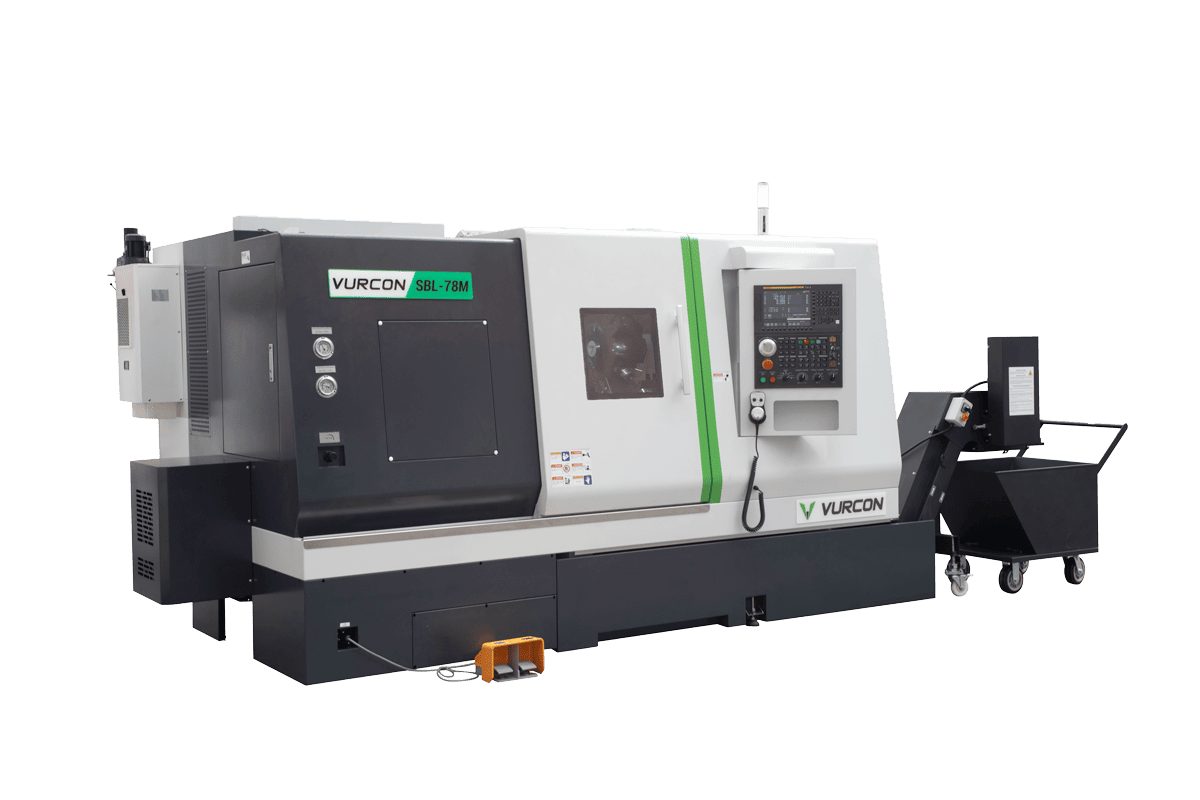

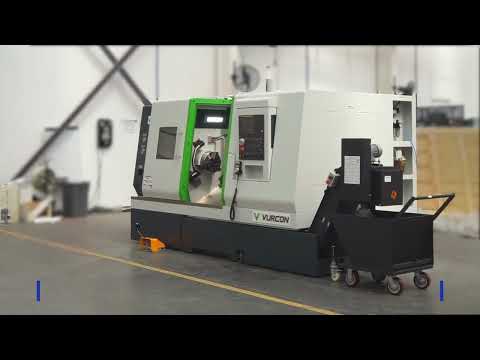

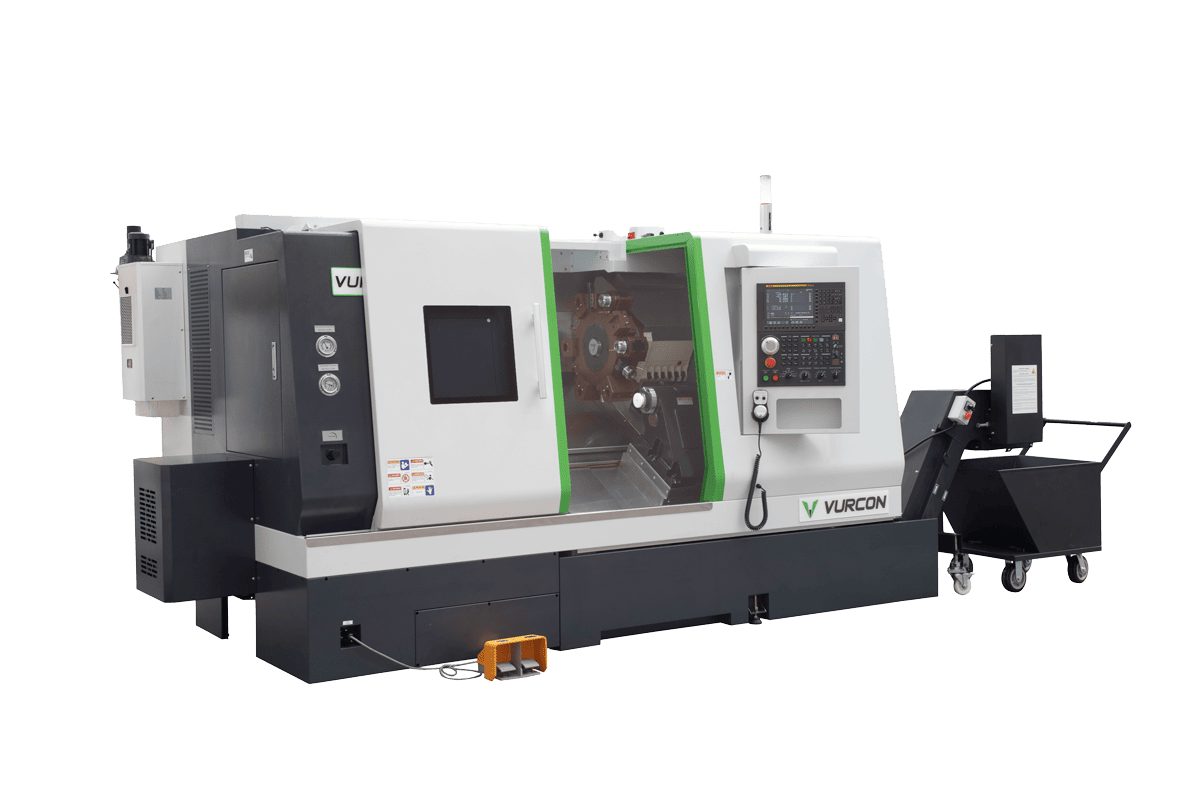

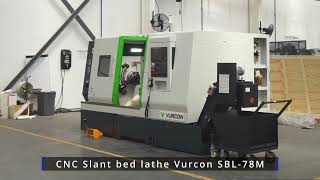

Slant-bed CNC lathe Vurcon SBL78M
Slant bed with Ø75 mm bar capacity, 800 mm turning length and BMT65 live-tool turret for medium-sized parts.
- Travels X/Z
- X 280 · Z 820 mm
- Spindle
- 3,000 rpm A2-8 · 15 kW
- Swing · max. workpiece
- Ø 650 mm · turning Ø 400 × 800 mm
- Turret
- 12 BMT65 live tools
- Weight
- 5,500 kg
- CNC control
FANUC 0i-TF Plus
We reply within 24 working hours.
Technical data
Select a section to see the details:
| Speed | Taper | Power (100 % / 40 % DC) | Torque (100 % / 40 % DC) | Availability |
|---|---|---|---|---|
| 3,000 rpm Most common | A2-8 | 15 kW | Standard · belts · spindle bore Ø 92 mm |
Interference envelope depending on axis position and table type: check that your part fits before requesting a quotation.
| Swing over bed | Ø 650 mm |
|---|---|
| Swing over cross slide | Ø 400 mm |
| Max. turning | Ø 400 × 800 mm |
| Bar capacity | Ø 75 mm |
| Live-tool turret | 12 BMT65 live stations · 6,000 rpm (0°) / 4,000 rpm (90°) · 4.5 kW · 10 Nm |
|---|
| Rapid traverse (m/min) | 24 / 24 / 24 (X/Z/R) |
|---|---|
| Travels | X 280 · Z 820 · R (tailstock) 740 mm |
| Bed | One-piece, inclined at 30° |
| Tailstock | Ø 85 mm · MT5 · programmable |
| CNC control | FANUC 0i-TF Plus with 15" touchscreen and Manual Guide i (optional: SIEMENS 828D ShopTurn) |
| Dimensions (L × W × H) | 3,365 × 2,190 × 1,800 mm |
Data from the manufacturer's catalogue; the final configuration is confirmed in the quotation.
Automation options
Ready to be automated from day one or whenever you need it: more spindle hours without an operator and a lower cost per part.
Series production from bar without loading parts by hand.
✓ Standard interface · optional feeder · Ø 75 mm bar
Automatic loading and unloading of parts.
✓ On request
Parts catcher and tool setter included as standard.
Description

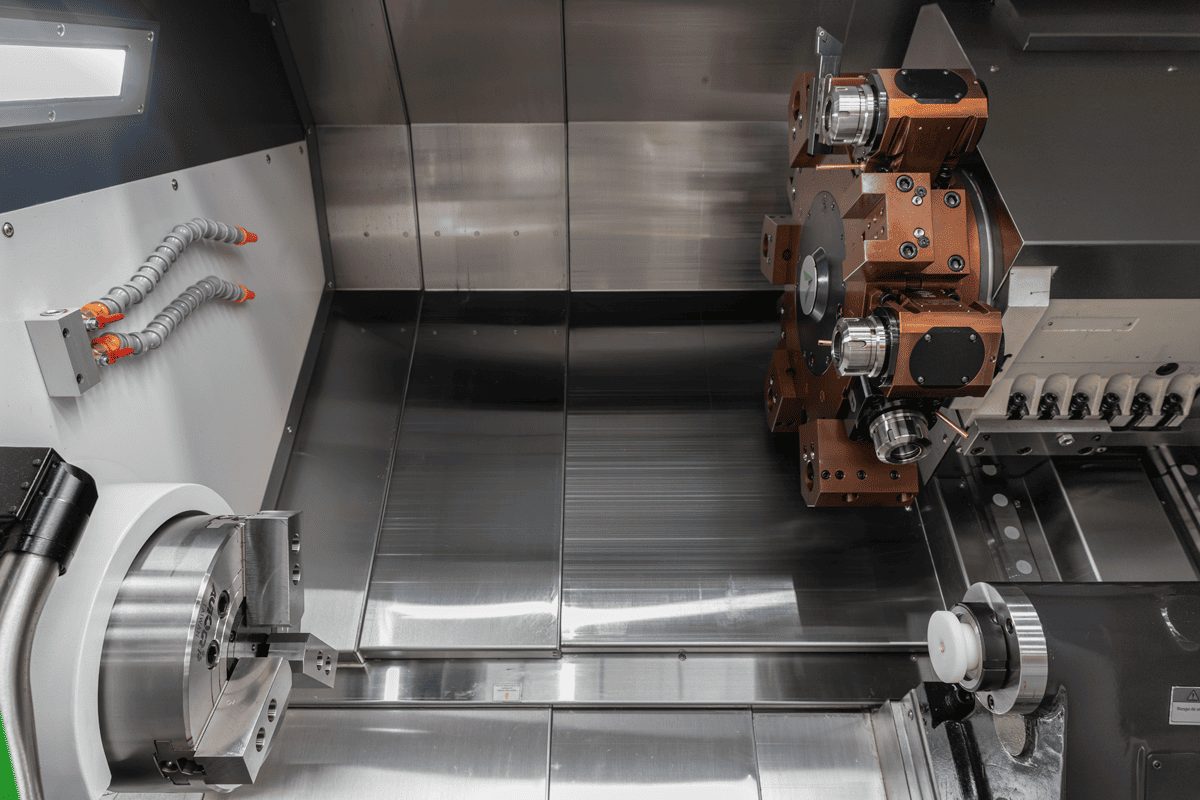

The Vurcon SBL78M is a 30° slant-bed CNC lathe with live tooling. It swings Ø 650 mm over the bed, turns parts up to Ø 400 × 800 mm and has a bar capacity of Ø 75 mm. The A2-8 spindle (belt-driven) runs at 3,000 rpm with 15 kW, and the turret carries 12 BMT65 live tools. The slant bed clears chips well and gives good access to the work area.
Typical applications
- Turned parts with radial drilling, milling or threading in a single clamping.
- Medium series from bar or part by part, in steel, stainless steel and aluminium.
- Subcontractors and workshops that need to shorten cycle times.
Standard equipment
- FANUC 0i-TF Plus control with 15" touchscreen, Manual Guide i and electronic handwheel.
- 10" hydraulic through-bore chuck and programmable tailstock.
- Coolant at 10 bar, chain chip conveyor and oil and coolant separator.
- Tool setter, bar feeder interface and air conditioning in the cabinet.
Options include SIEMENS 828D control with ShopTurn and a bar feeder.
Vurcon is the CNC machinery brand of the Ferrotall Group. Ferrotall handles sales, transport, commissioning and training at your workshop, with its own technical service and spare parts in Spain. Ask us for a quote with the configuration you need.
Ferrotall service
- Installation and training Commissioning in your workshop and operator training by our technical team.
- In-house technical service Service team with specialist technicians and spare parts to keep your machine producing.
- Application advice We help you choose the machine and equipment to suit your parts and production.
- More than 45 years Machine tool distributor based in Monforte del Cid (Alicante).
