SMERAL
Eccentric press Smeral type LKR200/80
- Year
- 1962
- Table
- 800 x 800
- Power
- 200
- Weight
- 9100
We reply within 24 working hours.
Technical data sheet
General data
| Model | LKR 200/80 |
|---|---|
| Type | Mechanical |
| Year | 1962 |
Travels and table
| Table dimensions | 800 x 800 |
|---|
Headstock and spindle
| Power | 200 |
|---|---|
| Motor power | 12 kW |
Dimensions, weight and connection
| Overall dimensions | 1500x1550x3450 |
|---|---|
| Weight | 9100 |
Other data
| Stroke | 50 |
|---|---|
| Min. / max. distance between platens | 400 |
| Strokes per minute | 60 |
| Machine no. | 5127 |
| Slide adjustment | 80 mm |
| T-slotted head | 700 x 700 mm |
| Distance between columns | 800 mm |
Data from our purchase record, subject to verification. Please confirm any important figure with us before purchase or come and see the machine.
Description and equipment

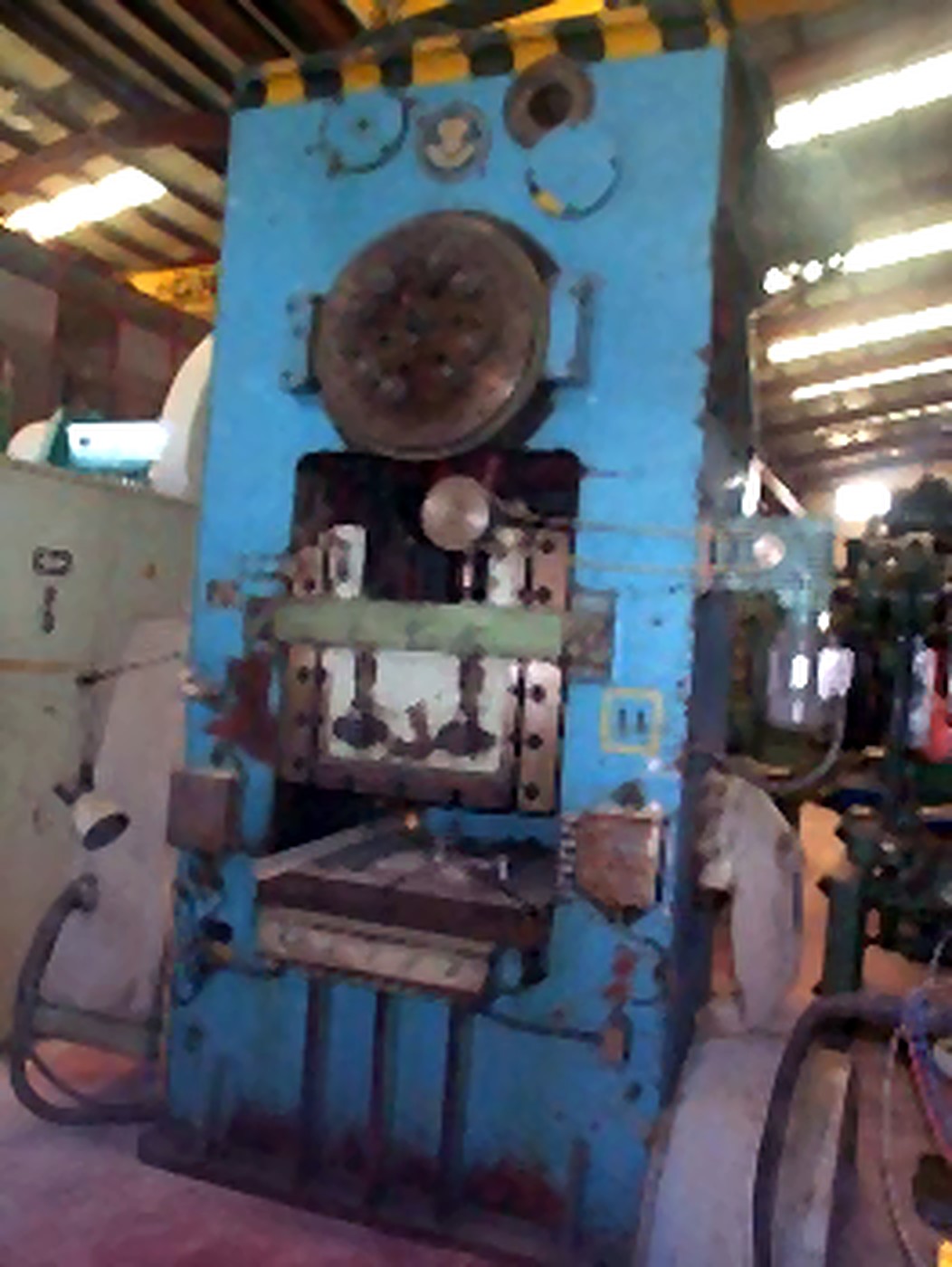

Mechanical eccentric press Smeral LKR 200/80
200-tonne mechanical eccentric press built by Šmeral Brno (Czech Republic) in 1962. It is designed for cutting, punching and stamping sheet metal in production runs, with an 800 x 800 mm table and a short 50 mm stroke.
Šmeral is one of the longest-established European makers of mechanical presses. Presses of this type stand out for their robust frame, constant stroke rate and simple mechanical maintenance, with no complex electronics.
Configuration of this unit

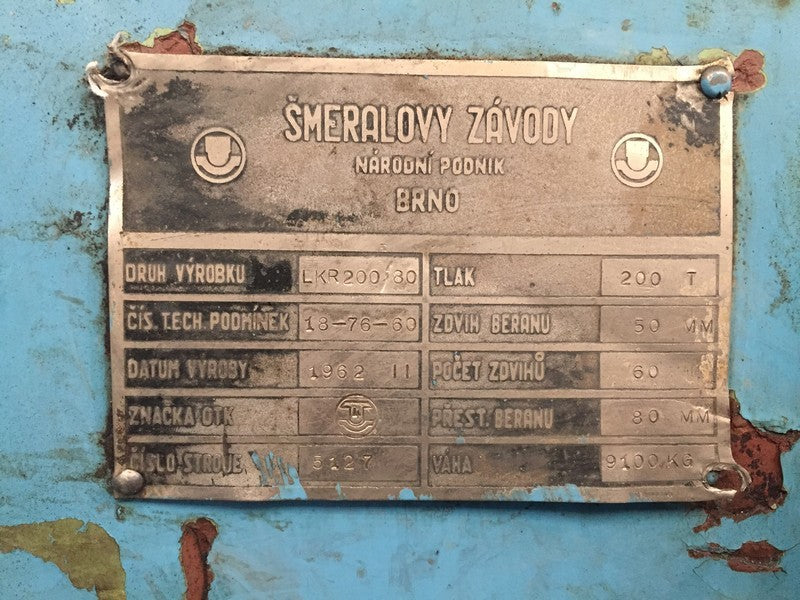

- Model: LKR 200/80 (manufacturer's plate), machine no. 5127
- Force: 200 t
- Stroke: 50 mm; slide adjustment: 80 mm
- Strokes per minute: 60
- Table: 800 x 800 mm; distance between platens: 400 mm
- T-slotted head: 700 x 700 mm; distance between columns: 800 mm
- Motor power: 12 kW
- Year of manufacture: 1962 (plate: 11/1962)
- Overall dimensions: 1,500 x 1,550 x 3,450 mm; weight: 9,100 kg
Typical applications
Cutting and punching of sheet-metal parts, simple progressive die stamping, light deep drawing and stamping of fittings, brackets and metal components in sheet-metal fabrication shops, the electrical sector and component manufacturers.
See it at Ferrotall
The machine is at our premises in Monforte del Cid (Alicante), where you can visit it; contact us to see it running or to receive a video. Our own technical service takes care of transport, installation and commissioning.
Frequently asked questions
What force and stroke does the Smeral LKR 200/80 press have?
According to its rating plate, the press delivers 200 tonnes of force with a 50 mm stroke, 60 strokes per minute and 80 mm of slide adjustment. The table measures 800 x 800 mm and the distance between platens is 400 mm, which allows medium-sized dies to be fitted.
What is a 200-tonne eccentric press used for?
It is mainly used for cutting, punching and blanking sheet metal in medium and long production runs. Its short stroke and its rate of 60 strokes per minute make it suitable for flat parts, brackets, fittings and stamped components, where force at the working point matters more than drawing depth.
Where can I see the press and who takes care of transport?
The press is at Ferrotall, in Monforte del Cid (Alicante), where you can visit it by appointment or ask us for a video. Our own technical service can take care of transport, installation and commissioning at your premises, bearing in mind its weight of 9,100 kg and height of 3,450 mm.
Visit, transport and commissioning
- See it running Visit it at our facilities or ask us for a video of the machine under power.
- Transport We handle dismantling, loading and transport to your workshop.
- Commissioning Installation, levelling and commissioning by our technical service.
- More than 45 years Used machinery trading backed by our technical service.
Request a quote
Eccentric press Smeral type LKR200/80 · Ref. 21657
