HELLER
Heller 1120/1250 milling machine
- X/Y/Z travels
- 800 X 280 X 370
- Taper
- ISO 40
- Spindle speed
- 35 to 1,600
- Table
- 1250 X 260
- Power
- 2.2
- Weight
- 1,800KG
We reply within 24 working hours.
Technical data sheet
General data
| Model | FU 1250 / 1250 |
|---|---|
| Type | Universal |
Travels and table
| X, Y, Z travels | 800 X 280 X 370 |
|---|---|
| Table dimensions | 1250 X 260 |
Headstock and spindle
| Taper | ISO 40 |
|---|---|
| Main motor power | 2.2 |
| Spindle speed (rpm) | 35 to 1,600 |
Dimensions, weight and connection
| Overall dimensions | 1730 X 1700 X 1750 |
|---|---|
| Weight | 1,800KG |
Other data
| Digital readout (DRO) | Fagor Innova, 3 axes |
|---|---|
| Accessories | Vice; table guard with doors and interlocks |
Data from our purchase record, subject to verification. Please confirm any important figure with us before purchase or come and see the machine.
Description and equipment
Conventional universal milling machine for workshop and tooling

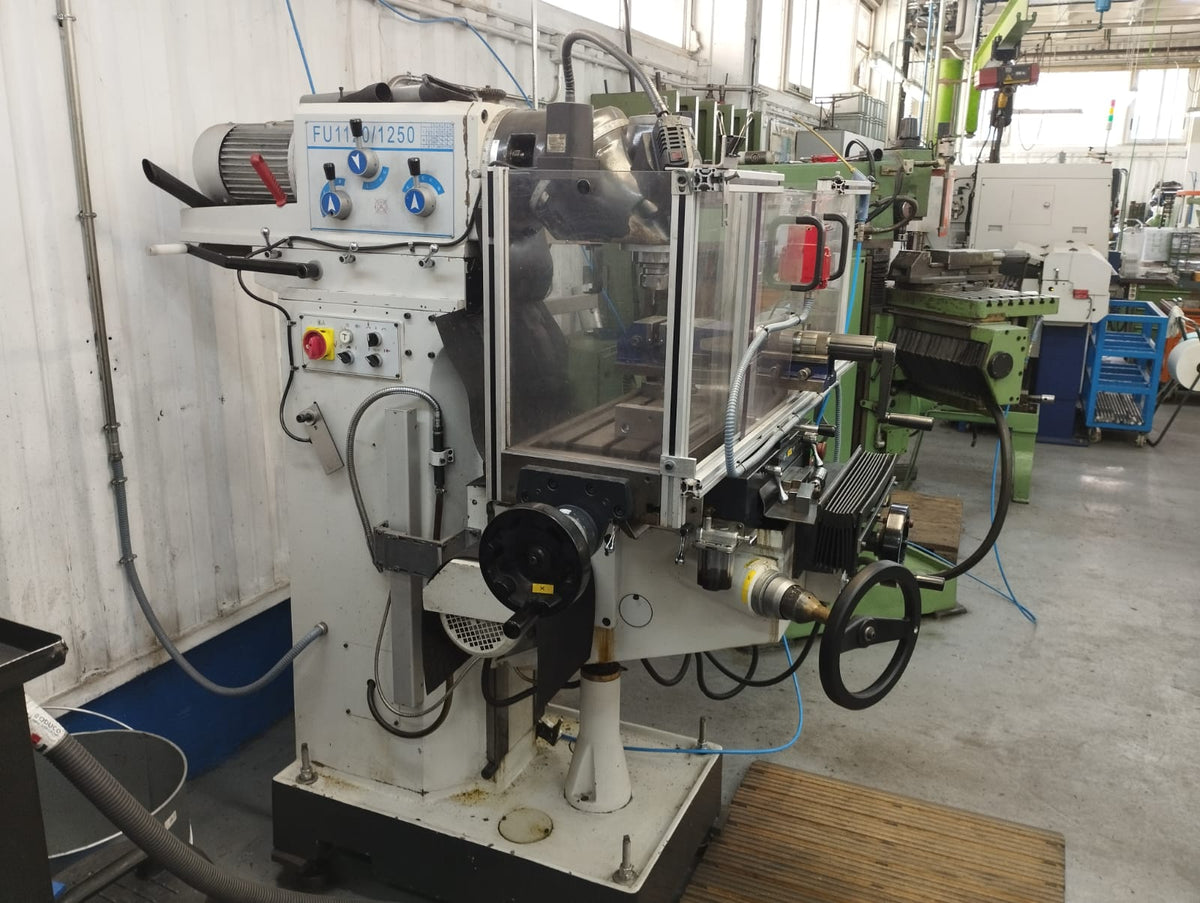

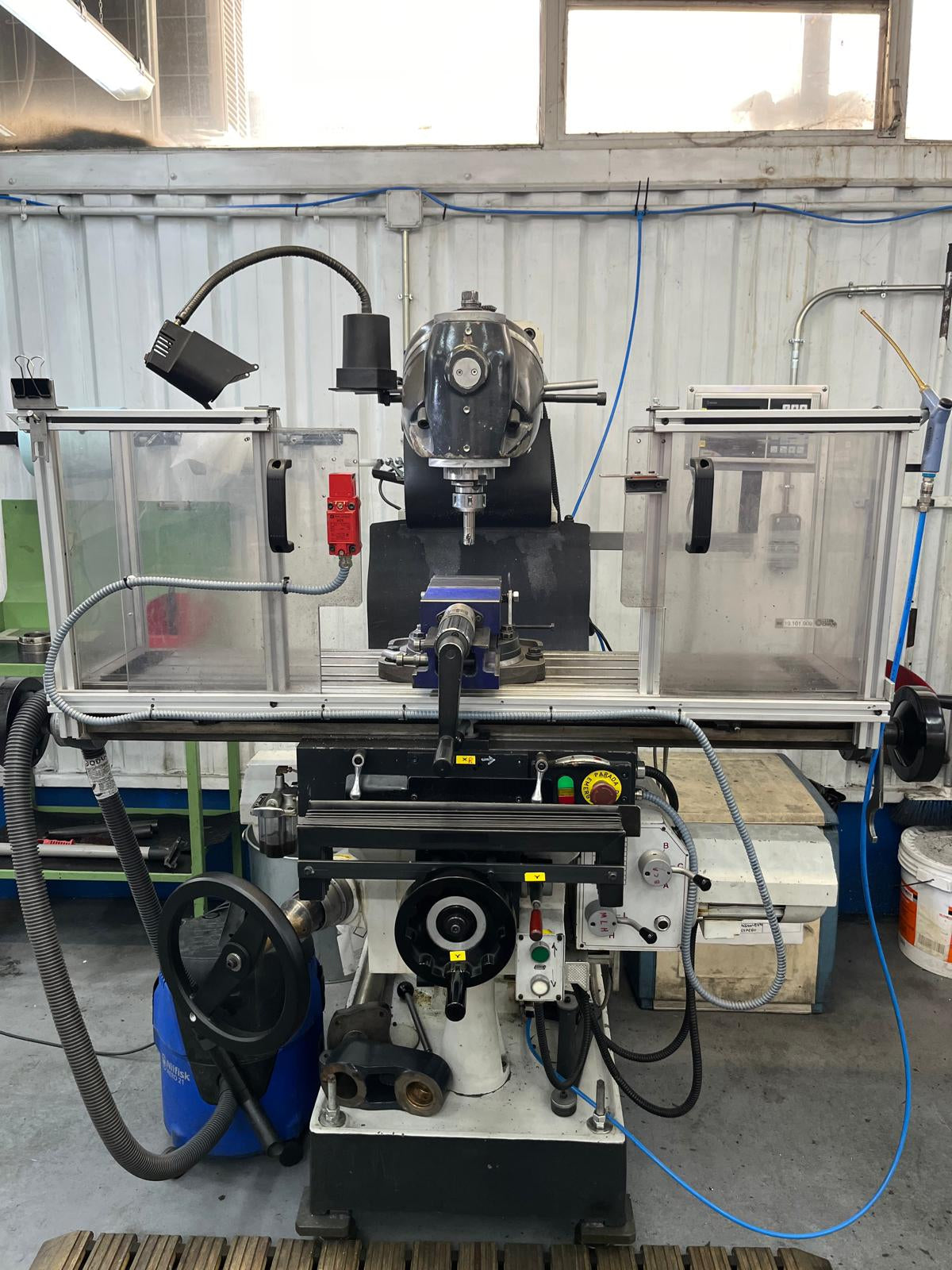

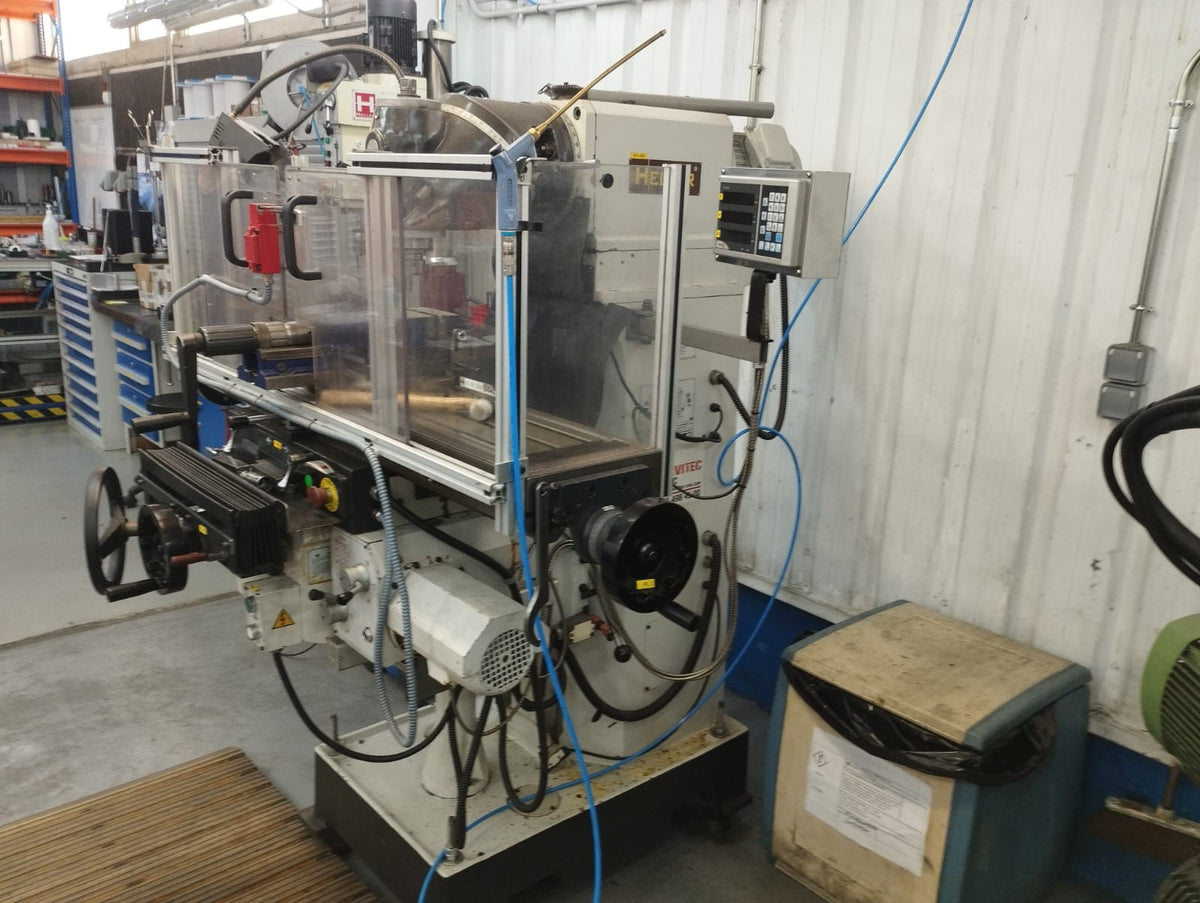

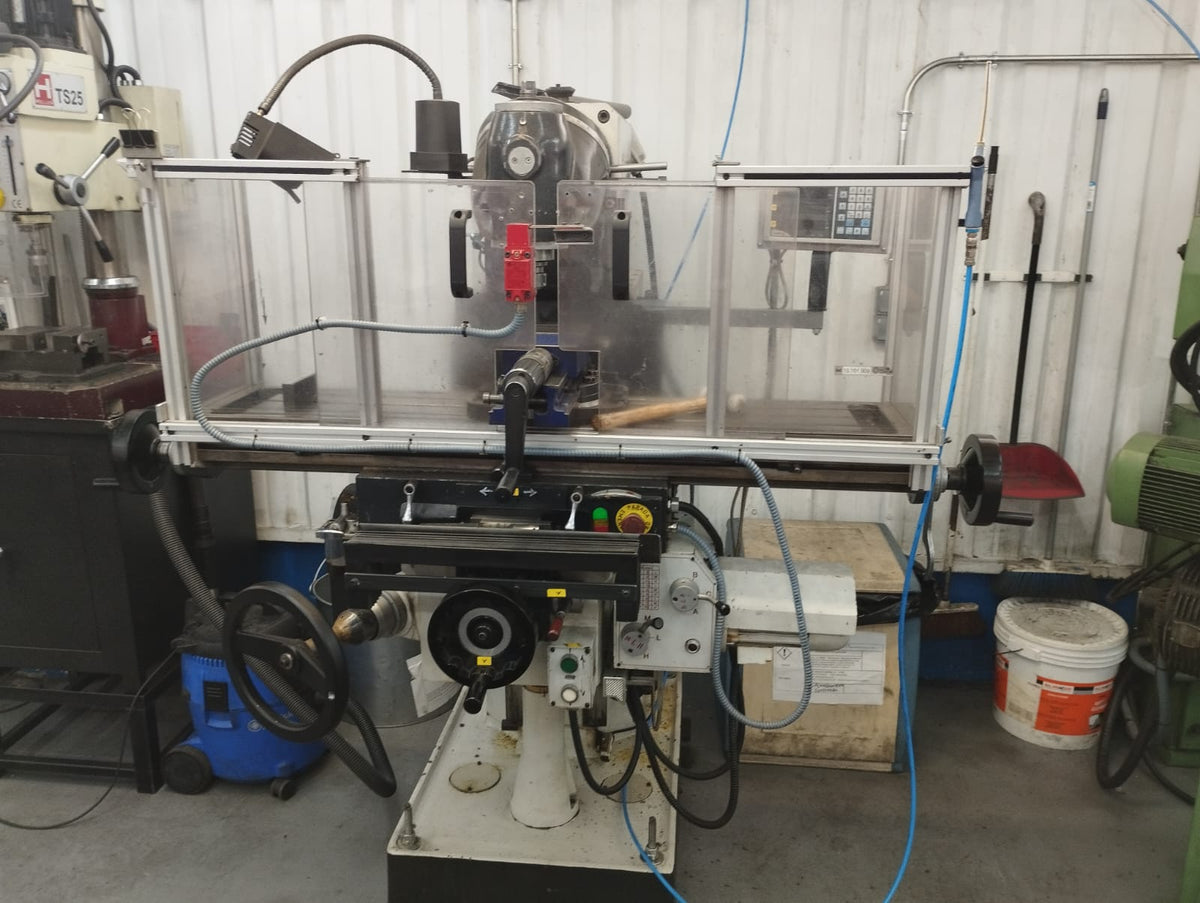

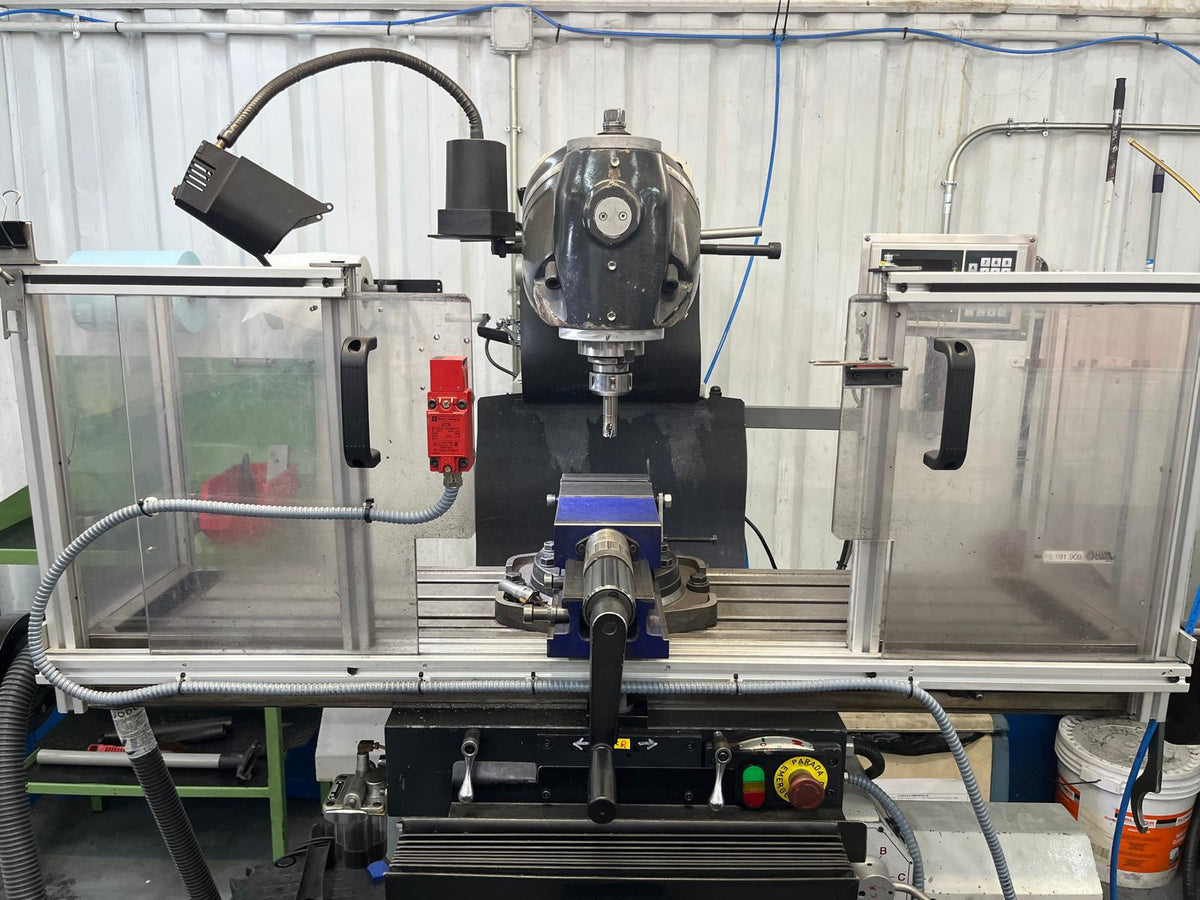

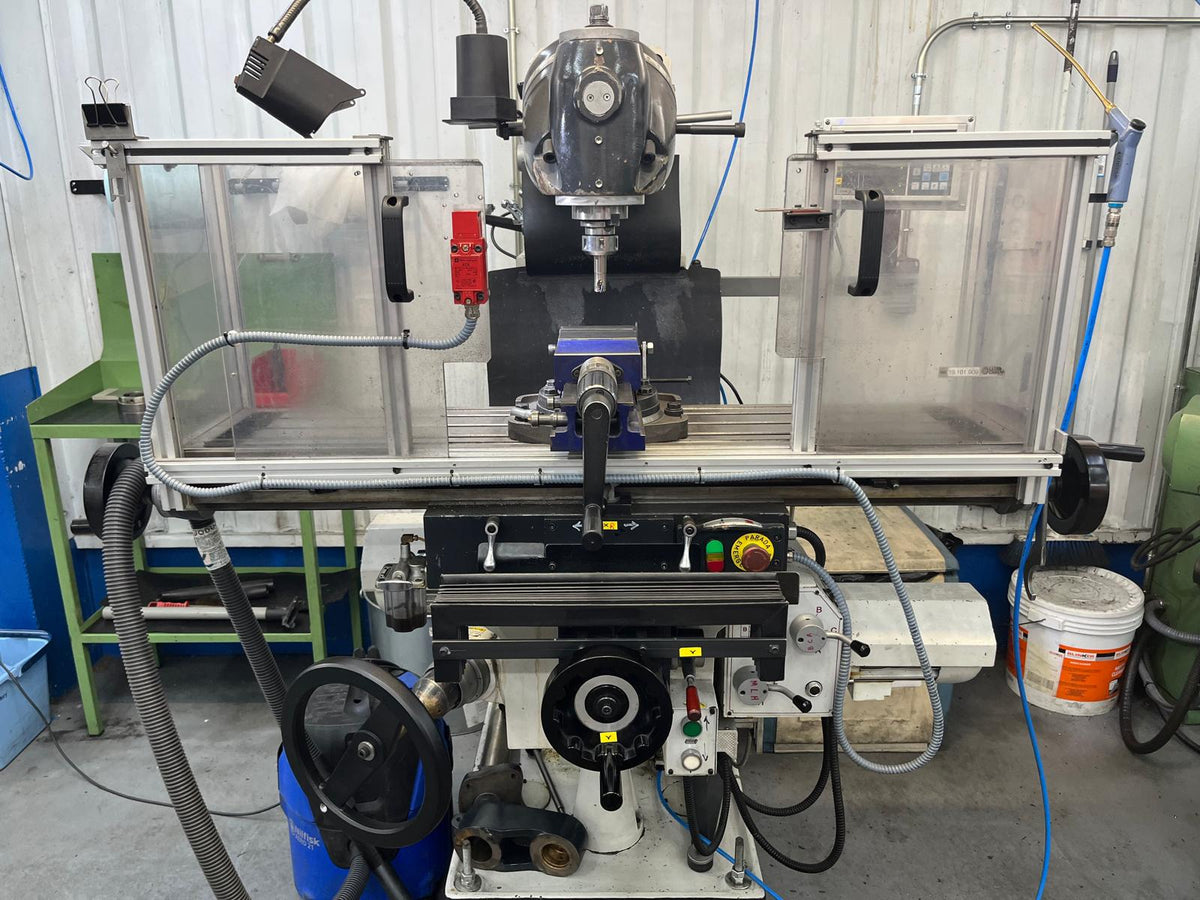

The Heller FU 1120/1250 is a conventional universal knee-type milling machine, suited to maintenance shops, tooling, vocational training and one-off part production.
Key strengths of the machine

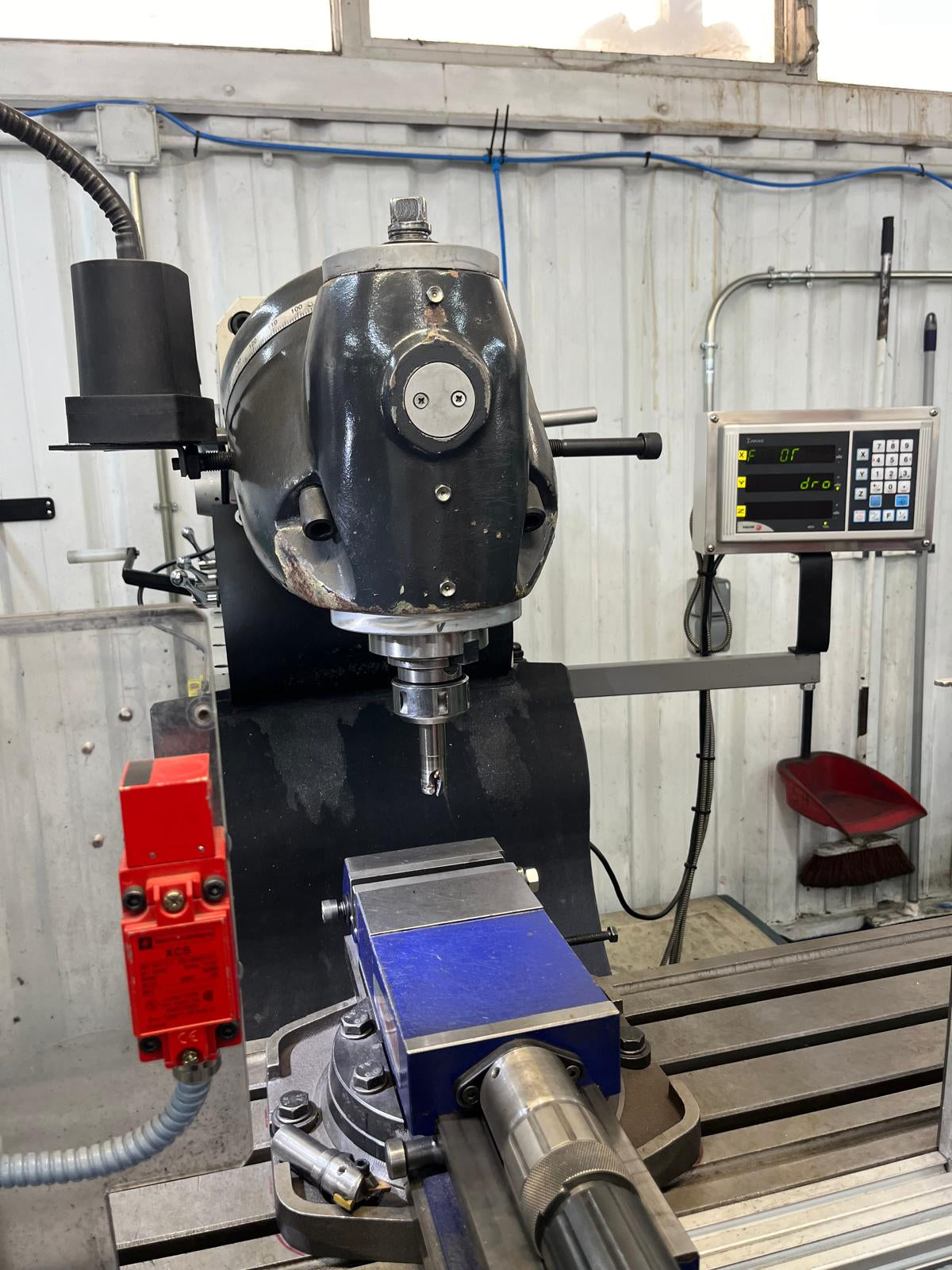

Its universal knee-type configuration allows milling, drilling and boring at different angles with feeds on all three axes. This unit has a 3-axis Fagor digital readout, which makes positioning and reading dimensions easier without relying on verniers, and a perimeter table guard with doors and safety interlocks.
Configuration of this unit
- Type: universal
- Travels X, Y, Z: 800 x 280 x 370 mm
- Table: 1,250 x 260 mm
- Taper: ISO 40
- Main motor: 2.2 kW
- Spindle speeds: 35 to 1,600 rpm
- Fagor Innova 3-axis readout
- Vice on the table and table guard with interlocks
- Overall dimensions: 1,730 x 1,700 x 1,750 mm; weight 1,800 kg
Typical applications
Machining of one-off parts and repairs, slotting, face milling, drilling and boring, tooling, industrial maintenance and training in schools and technical centres.
See it at Ferrotall
The machine is at our premises in Monforte del Cid (Alicante), where you can visit it; contact us to see it running or to receive a video. Our own technical service takes care of transport, installation and commissioning.
Frequently asked questions
What workpiece size does the Heller FU 1120/1250 milling machine accept?
It has a 1,250 x 260 mm table and travels of 800 mm in X, 280 mm in Y and 370 mm in Z. It is suitable for small and medium-sized workshop parts, such as flanges, brackets, shafts, keys and small tooling, held in a vice or directly on the table.

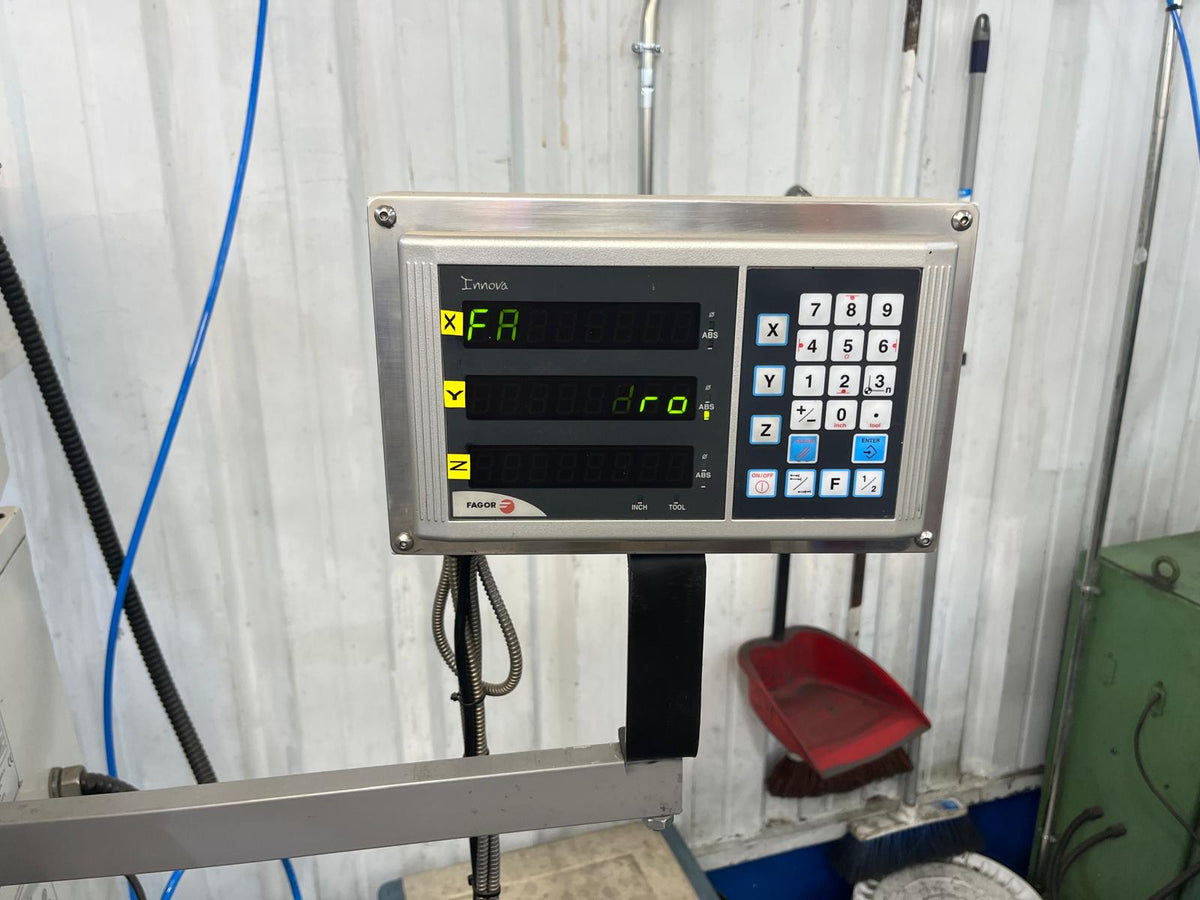

What does the Fagor readout on this milling machine offer?
The 3-axis Fagor digital readout shows the position of the table and the head on screen. It makes it easier to position holes, work with incremental dimensions and cut down on vernier reading errors, which improves accuracy and speed on one-off parts and repairs.
What is the difference between a universal milling machine and a CNC milling machine?
On a conventional universal milling machine the operator moves the axes with handwheels or power feeds, and the versatility of the head allows work at several angles. A CNC milling machine runs programs automatically. The conventional machine is simpler and quicker to set up for one-off parts, repairs and training.
Visit, transport and commissioning
- See it running Visit it at our facilities or ask us for a video of the machine under power.
- Transport We handle dismantling, loading and transport to your workshop.
- Commissioning Installation, levelling and commissioning by our technical service.
- More than 45 years Used machinery trading backed by our technical service.
Request a quote
Heller 1120/1250 milling machine · Ref. 059997
