CENTRO MECANIZADO HERMLE UWF 902H
CENTRO MECANIZADO HERMLE UWF 902H
CENTRO MECANIZADO HERMLE UWF 902H
CENTRO MECANIZADO HERMLE UWF 902H
1 / 4
Used

HERMLE

Machining centre Hermle UWF 902H

  • Available
  • Ref. 039351
  • Monforte del Cid (Alicante)
Year
1996
Control
CNC Heidenhain TNC 426
X/Y/Z travels
X 600 Y 450 Z 500
Taper
ISO 40 DIN 2079
Spindle speed
6,300
Table
900x520
Call +34 966 662 296

We reply within 24 working hours.

Technical data sheet

General data

ModelUWF 902 H
ControlCNC Heidenhain TNC 426
Year1996

Travels and table

Table dimensions900x520
X, Y, Z travelsX 600 Y 450 Z 500
Vertical quill travel75 mm

Headstock and spindle

TaperISO 40 DIN 2079
Spindle speed (rpm)6,300
Spindle power8.6 kW (100 % duty cycle)
Speed range20–6,300 rpm in 3 ranges

Tooling and equipment

Tool changer34 positions

Dimensions, weight and connection

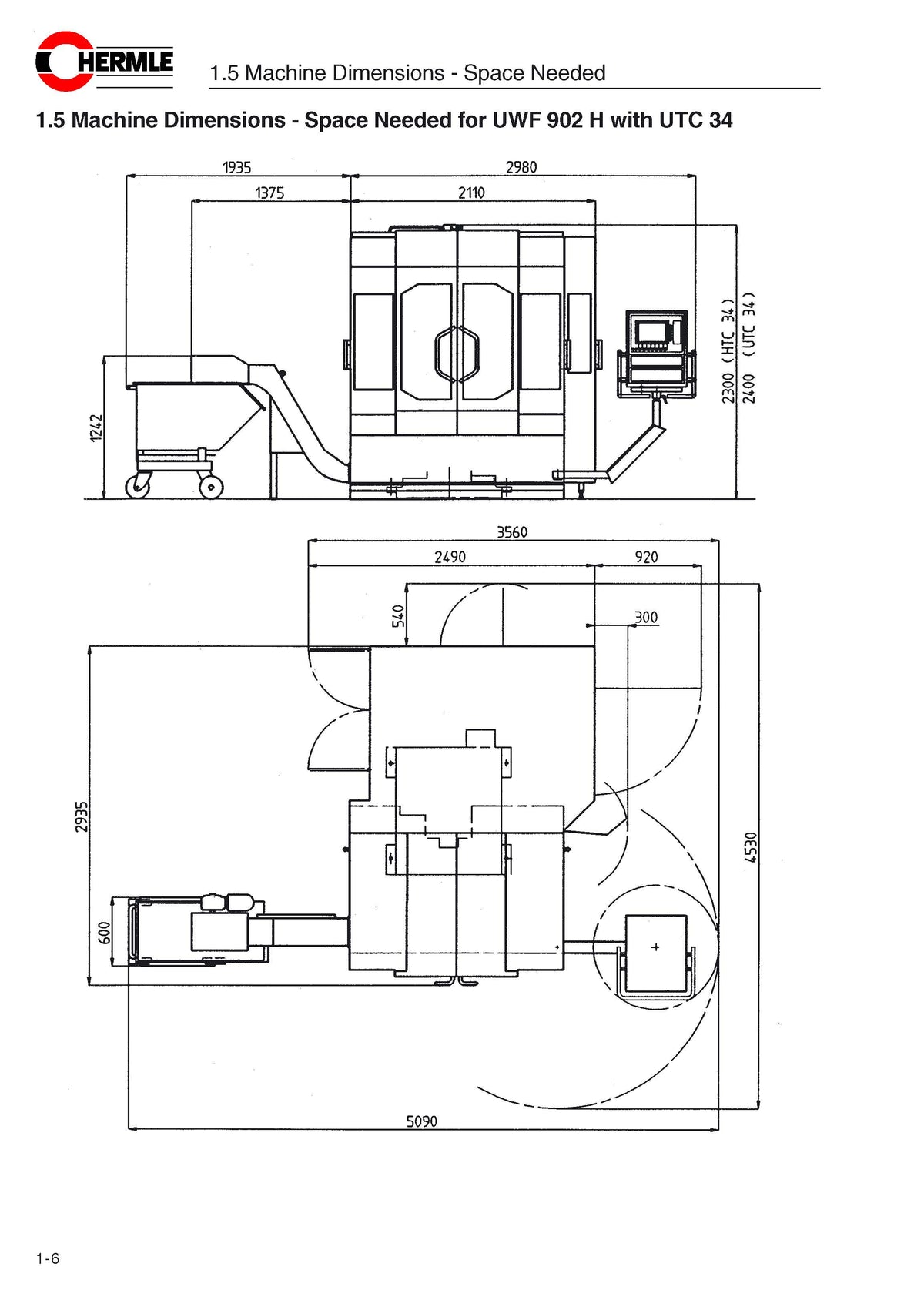

Overall dimensions2950 X 2200 X 2300
Weight4900

Data from our purchase record, subject to verification. Please confirm any important figure with us before purchase or come and see the machine.

Description and equipment

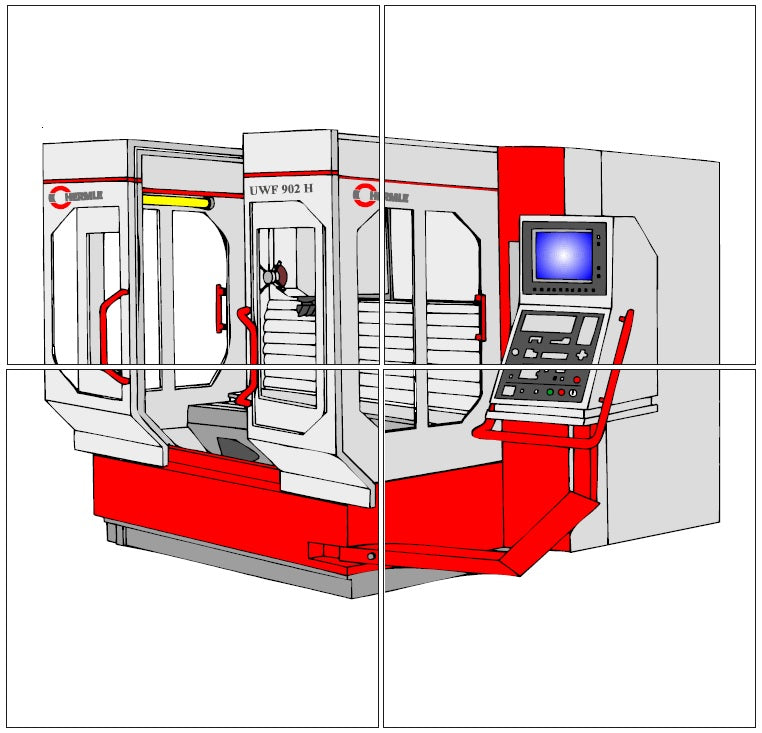

Universal CNC milling machine Hermle UWF 902 H

Universal CNC milling machine from Hermle (Germany), built in 1996, with a Heidenhain TNC 426 control and a 34-tool changer. It is a widely used machine for tooling, moulds and one-off or short-run precision parts.

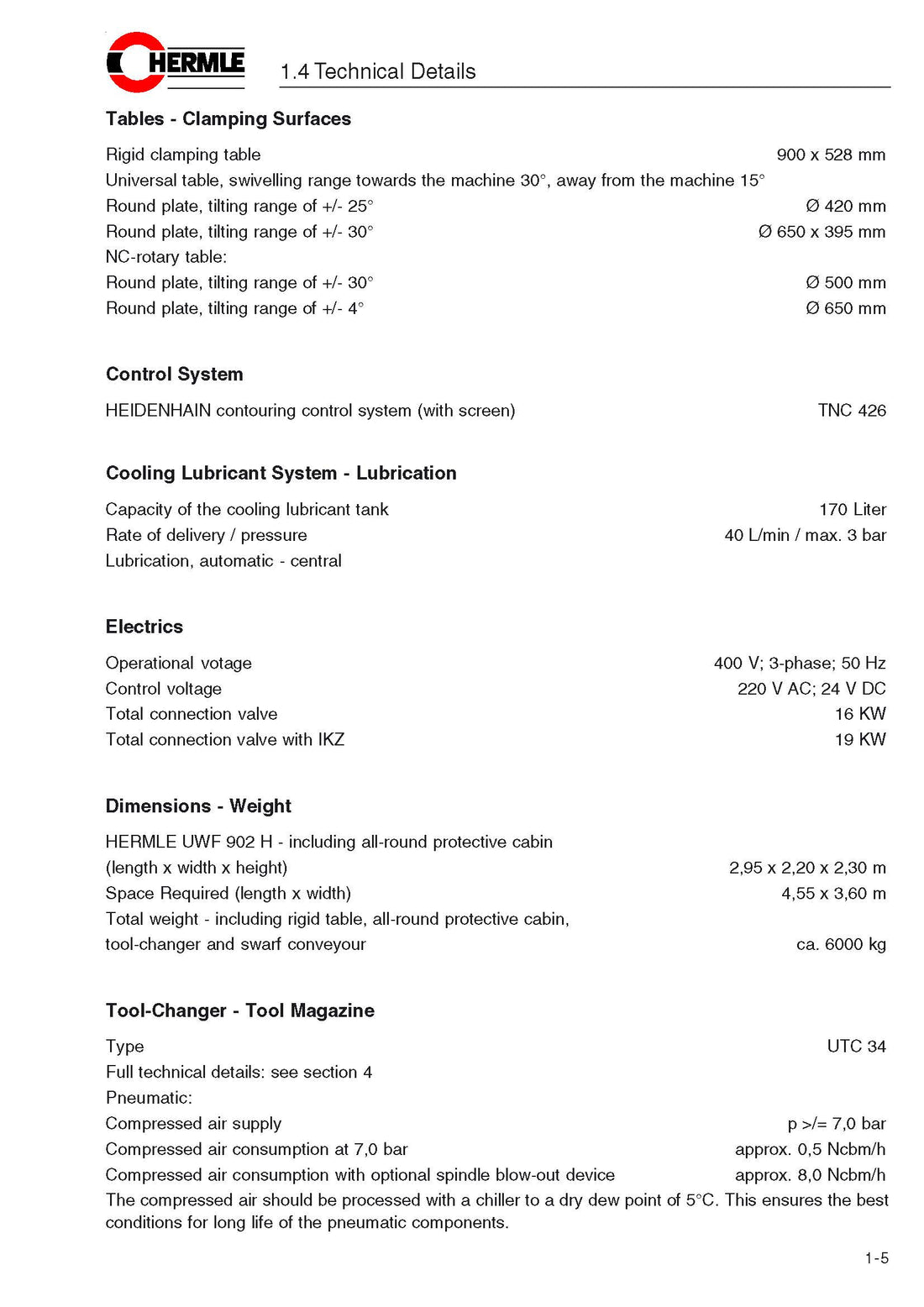

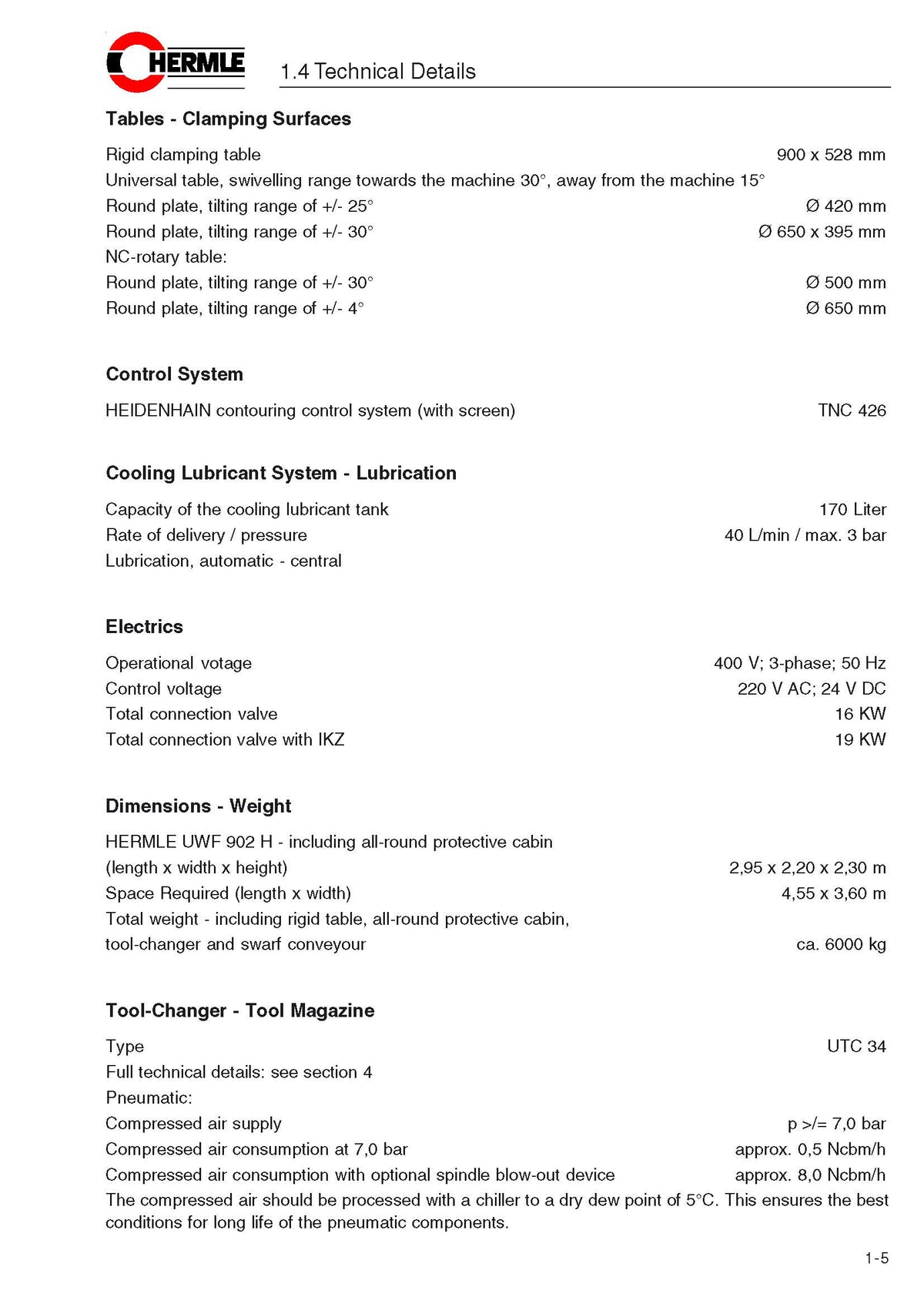

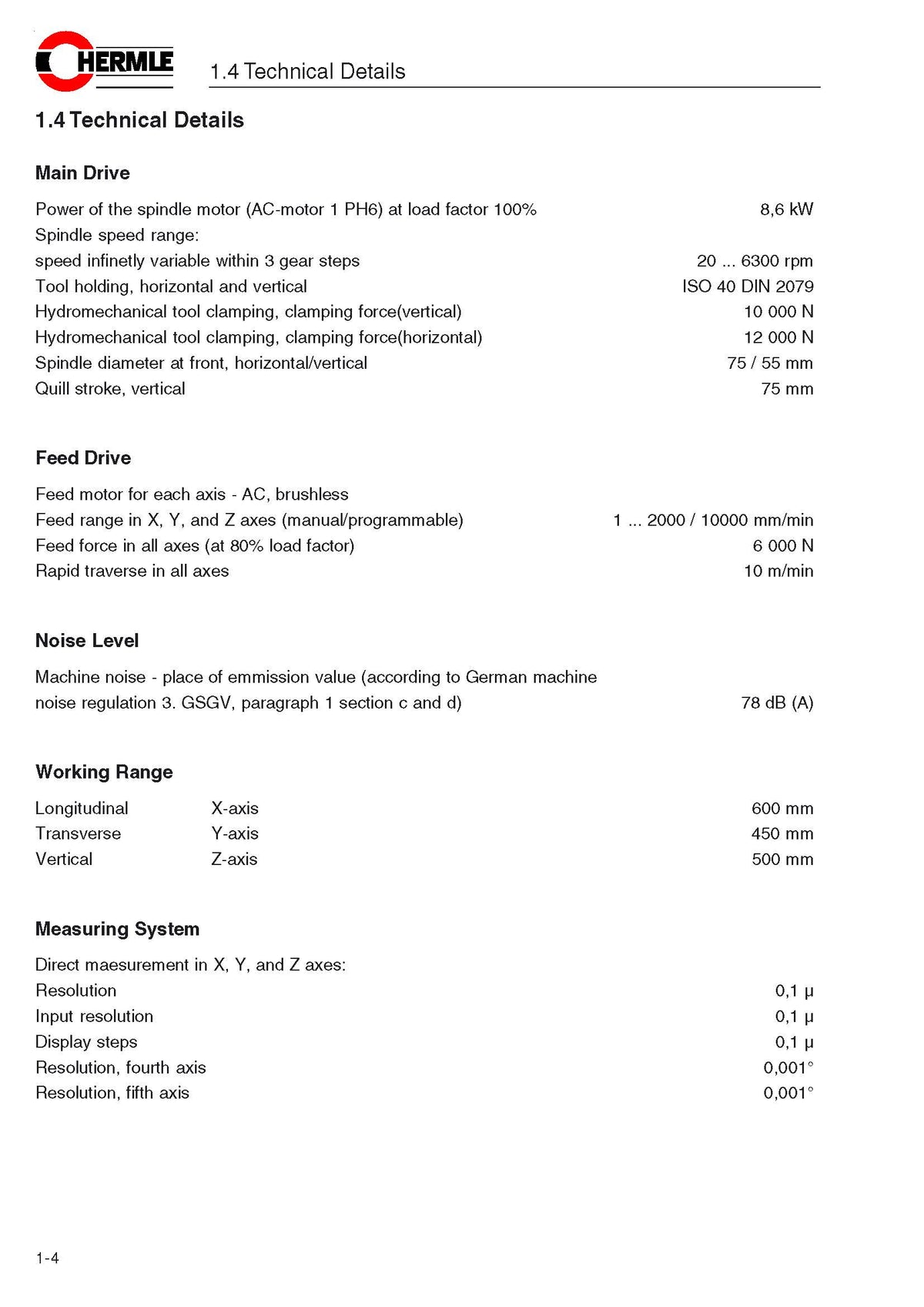

The Hermle UWF series combines a horizontal and a vertical spindle on a rigid cast-iron structure. According to the manufacturer's documentation for the UWF 902 H, the spindle is driven by an 8.6 kW motor with stepless speed control from 20 to 6,300 rpm in three ranges, with direct measuring in X, Y and Z. The Heidenhain TNC 426 is a conversational control well known in mould shops.

Configuration of this unit

  • Model: Hermle UWF 902 H
  • Control: Heidenhain TNC 426
  • Travels: X 600 mm; Y 450 mm; Z 500 mm
  • Table: 900 x 520 mm
  • Taper: ISO 40 DIN 2079
  • Spindle speed: up to 6,300 rpm
  • Tool changer: 34 positions
  • Year: 1996
  • Overall dimensions: 2,950 x 2,200 x 2,300 mm; weight: 4,900 kg

Typical applications

Tooling, electrodes, mould plates, precision prismatic parts and prototypes, in die-making, general machining and industrial maintenance shops.

See it at Ferrotall

The machine is at our premises in Monforte del Cid (Alicante), where you can visit it; contact us to see it running or to receive a video. Our own technical service takes care of transport, installation and commissioning.

Frequently asked questions

Which CNC control does the Hermle UWF 902 H have?

This unit has a Heidenhain TNC 426 control, a contouring control with conversational programming in Heidenhain language as well as ISO. It is very common in mould and tooling shops, which makes it easier to find programmers and operators familiar with it and to reuse existing programs.

What workpiece size does this milling machine accept?

The table of this unit measures 900 x 520 mm and the travels are 600 mm in X, 450 mm in Y and 500 mm in Z. It is suitable for small and medium-sized prismatic parts, tooling and mould plates, with an ISO 40 taper and an automatic 34-tool changer.

What is the difference between a universal CNC milling machine and a vertical machining centre?

A universal CNC milling machine such as the UWF 902 H can work with a horizontal or a vertical spindle, which allows several faces to be machined with fewer repositionings. A conventional vertical centre only works vertically, although it is usually faster and more common in production runs.

Visit, transport and commissioning

  • See it running Visit it at our facilities or ask us for a video of the machine under power.
  • Transport We handle dismantling, loading and transport to your workshop.
  • Commissioning Installation, levelling and commissioning by our technical service.
  • More than 45 years Used machinery trading backed by our technical service.
