Micro Dynamics

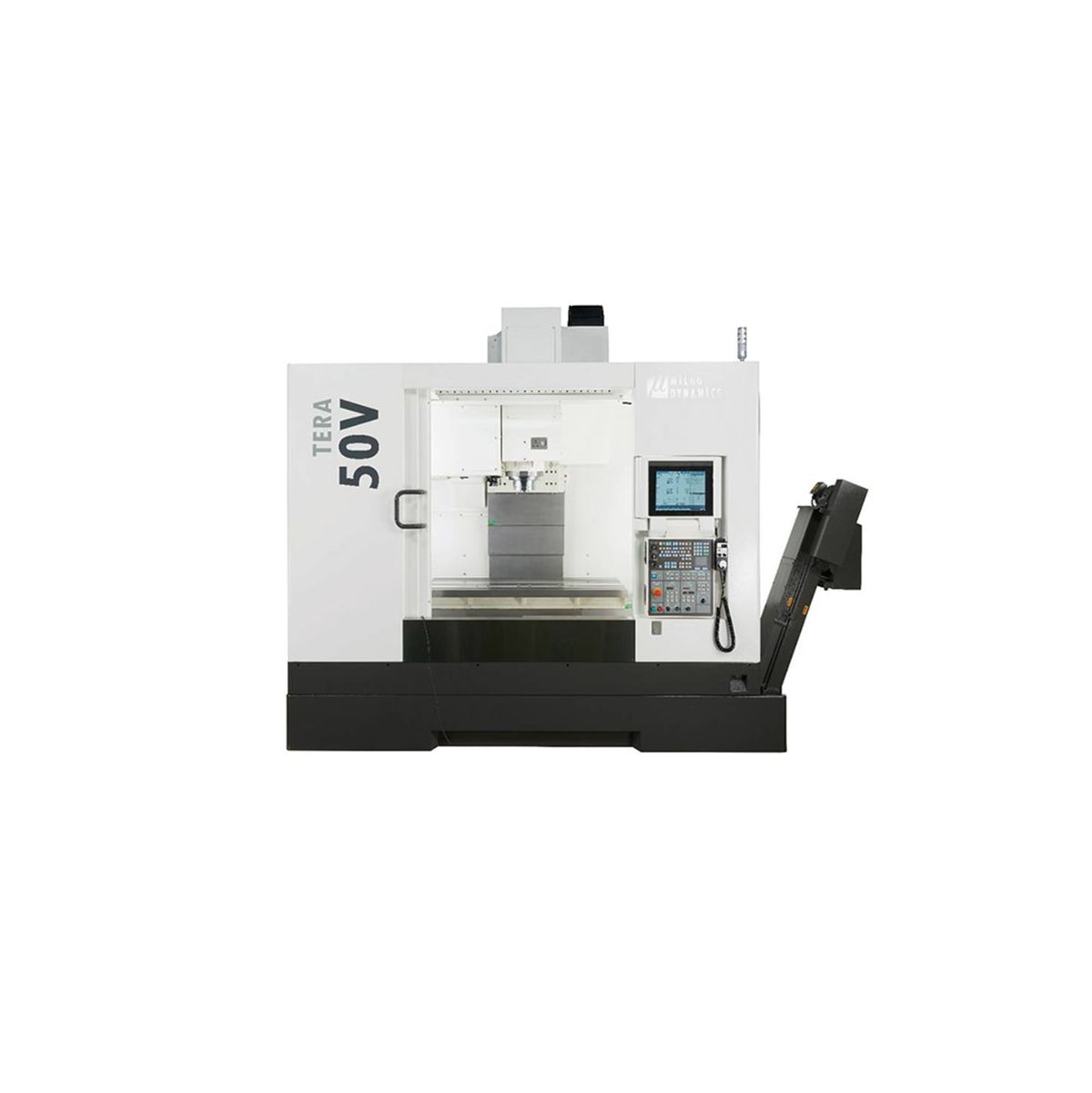

Machining centre Micro Dynamics TERA 50V
Vertical with 1,270 × 710 mm of travel, a 1,420 × 700 mm table and 1,500 kg load capacity.
Ref. TERA 50V
- Travels X/Y/Z
- 1,270 · 710 · 635 mm
- Best-selling spindles
- 15,000 rpm BBT40 · 141 Nm
15,000 rpm direct-drive · 191 Nm - Table · max. workpiece
- 1,420 × 700 mm · 1,500 kg
- Tools
- 40 (option 60/90/120)
- Weight
- 8,600 kg
- CNC control
MITSUBISHI M830VW / FANUC 0i-MF Plus
We reply within 24 working hours.
Technical data
Select a section to see the details:
| Speed | Taper | Power (100 % / 40 % DC) | Torque (100 % / 40 % DC) | Availability |
|---|---|---|---|---|
| 15,000 rpm Most common | BBT40 / CAT40 / DIN40 dual contact (HSK-A63 opt.) | 25 / 31 kW | 141 Nm | Standard (integrated motor spindle) |
| 15,000 rpm | BBT40 / CAT40 / DIN40 / HSK-A63 dual contact | 33 kW | 191 Nm | Standard alternative: direct drive |
| 18,000 rpm | Taper 40 dual contact | 31 kW | 141 Nm | Optional |
| 20,000 rpm | Taper 40 dual contact | 25 / 35 kW | 119 Nm | Optional (air-oil lubrication) |
| 24,000 rpm | HSK-A63 | 25 / 35 kW | 119 Nm | Optional (air-oil lubrication) |
Interference envelope depending on axis position and table type: check that your part fits before requesting a quotation.
| Max. workpiece (X × Y × Z) | 1,270 × 710 × 630 mm |
|---|---|
| Spindle nose to table distance | 100–735 mm |
| Door opening | 1,360 mm |
| Max. tool | Ø 75 × 300 mm, 7 kg |
| Magazine with swing-arm changer | 40 tools, taper 40 (option 60/90/120) |
|---|
| Rapid traverse X/Y/Z (m/min) | 52 / 52 / 48 (48 / 48 / 48 with FANUC) |
|---|---|
| Cutting feed | 20 m/min |
| Tool change | 1.2 s tool-to-tool; 2.5 s chip-to-chip |
| Accuracy (VDI 3441) | positioning 0.005 mm; repeatability ±0.0025 mm; DYPEC® thermal compensation (0.1 µm) |
| CNC control | MITSUBISHI M830VW with Micro Dynamics HMI (M850VW optional) or FANUC 0i-MF Plus; 15" touchscreen (19" optional) |
| Dimensions (W × D × H) | 3,606 × 2,478 × 2,953 mm |
| Installed power | 40 kVA |
Data from the manufacturer's catalogue; the final configuration is confirmed in the quotation.
Automation options
Ready to be automated from day one or whenever you need it: more spindle hours without an operator and a lower cost per part.
4th / 5th axisHIWIN RAB-200H tilting tableTurns the vertical into a 3+2 machine to machine several faces of the part in a single setup.
✓ Ø 200 mm faceplate on the table; requires 4th/5th-axis pre-wiring; leaves 870 × 700 mm of table free
Adds a rotary axis for cylindrical parts or for machining several faces without re-clamping.
✓ GSA CNC-170R / CNC-200R (worm gear) · GSA RCT-170R / RCT-200R (roller cam, backlash-free) · HIWIN RCV-250 (direct drive); optional manual tailstock
Prepares the machine for loading and unloading with a robot or cobot and for cell integration.
✓ automatic front door or side window (servo or pneumatic); EtherNet/IP network I/O as standard with Mitsubishi
More tools on the machine to chain part numbers without rebuilding the magazine by hand.
✓ 60 / 90 / 120 tools
Automatic work-offset setting and wear monitoring for safe unattended operation.
✓ OMP40 / OMP60 / RMP40 / RMP60 probes · TS-27R, Primo LTS or NC4 laser tool setting
Options according to the MEGA/TERA 2025 catalogue and the Micro Dynamics options list (Nov 2025); please confirm compatibility and lead time with Ferrotall.
Ferrotall service
- Installation and training Commissioning in your workshop and operator training by our technical team.
- In-house technical service Service team with specialist technicians and spare parts to keep your machine producing.
- Application advice We help you choose the machine and equipment to suit your parts and production.
- More than 45 years Machine tool distributor based in Monforte del Cid (Alicante).
