Micro Dynamics

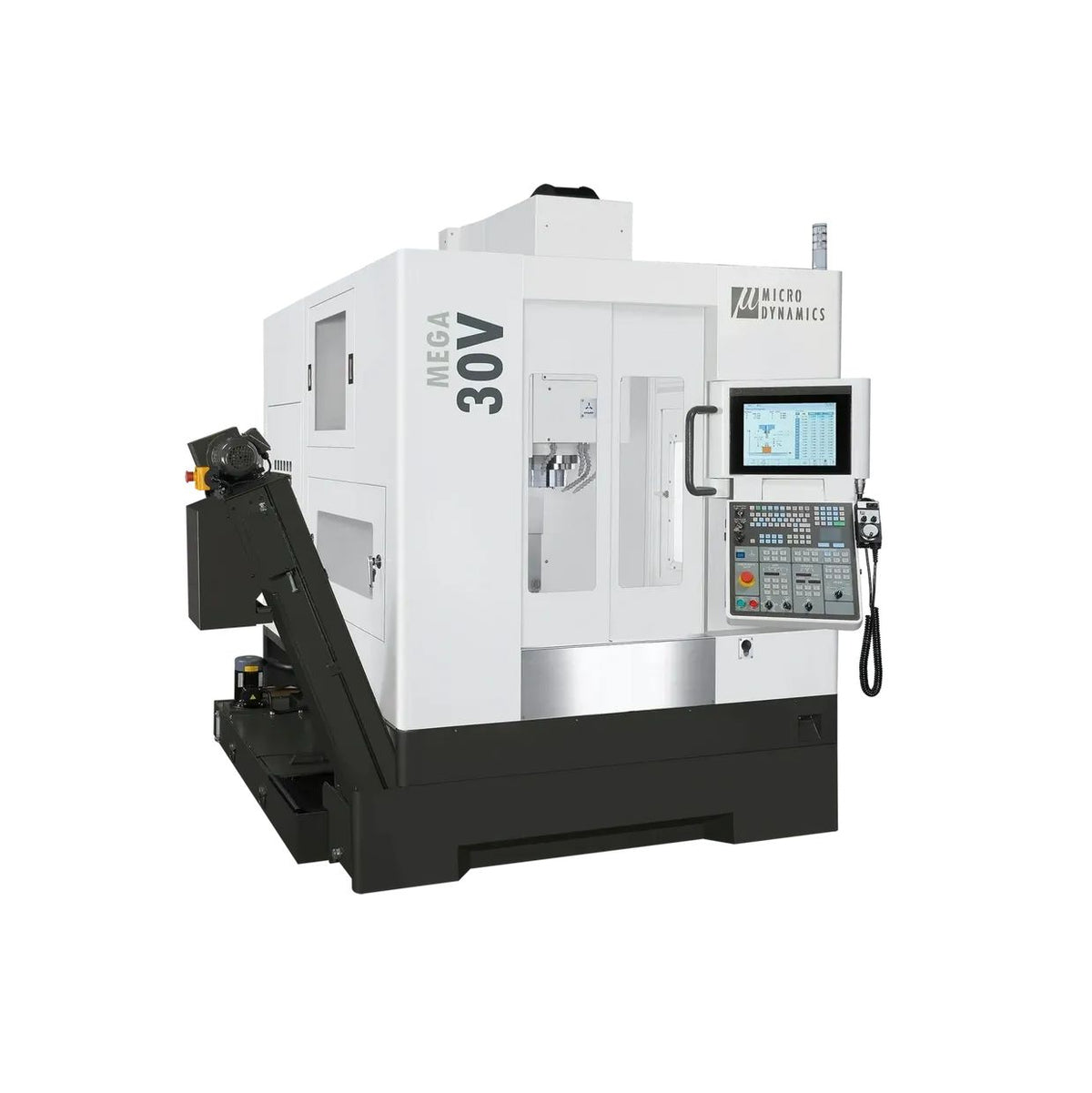

Machining centre Micro Dynamics MEGA 30V
The most compact vertical in the range: 760 mm of X travel and a 15,000 rpm motor spindle with 141 Nm in a footprint of just 2.4 × 2.2 m.
Ref. MEGA 30V
- Travels X/Y/Z
- 760 · 510 · 510 mm
- Best-selling spindles
- 15,000 rpm BBT40 · 141 Nm
15,000 rpm direct-drive · 118 Nm - Table · max. workpiece
- 860 × 500 mm · 800 kg
- Tools
- 30 (option 40/60/90/120)
- Weight
- 4,890 kg
- CNC control
MITSUBISHI M830VW / FANUC 0i-MF Plus
We reply within 24 working hours.
Technical data
Select a section to see the details:
| Speed | Taper | Power (100 % / 40 % DC) | Torque (100 % / 40 % DC) | Availability |
|---|---|---|---|---|
| 15,000 rpm Most common | BBT40 / CAT40 / DIN40 dual contact (HSK-A63 opt.) | 25 / 31 kW | 141 Nm | Standard (integrated motor spindle) |
| 15,000 rpm | BBT40 / CAT40 / DIN40 / HSK-A63 dual contact | 22 kW | 118 Nm | Standard alternative: direct drive |
| 18,000 rpm | Taper 40 dual contact | 31 kW | 141 Nm | Optional |
| 20,000 rpm | Taper 40 dual contact | 25 / 35 kW | 119 Nm | Optional (air-oil lubrication) |
| 24,000 rpm | HSK-A63 | 25 / 35 kW | 119 Nm | Optional (air-oil lubrication) |
Interference envelope depending on axis position and table type: check that your part fits before requesting a quotation.
| Max. workpiece (X × Y × Z) | 760 × 500 × 500 mm |
|---|---|
| Spindle nose to table distance | 100–610 mm |
| Door opening | 670 mm |
| Max. tool | Ø 75 × 230 mm, 7 kg (Ø 150 with neighbouring pockets empty) |
| Magazine with swing-arm changer | 30 tools, taper 40 (option 40/60/90/120) |
|---|
| Rapid traverse X/Y/Z (m/min) | 52 / 52 / 48 (48 / 48 / 48 with FANUC) |
|---|---|
| Cutting feed | 20 m/min |
| Tool change | 1.2 s tool-to-tool; 2.5 s chip-to-chip |
| Accuracy (VDI 3441) | positioning 0.005 mm; repeatability ±0.0025 mm; DYPEC® thermal compensation (0.1 µm) |
| CNC control | MITSUBISHI M830VW with Micro Dynamics HMI (M850VW optional) or FANUC 0i-MF Plus; 15" touchscreen (19" optional) |
| Dimensions (W × D × H) | 2,389 × 2,245 × 2,823 mm |
| Installed power | 30 kVA |
Data from the manufacturer's catalogue; the final configuration is confirmed in the quotation.
Automation options
Ready to be automated from day one or whenever you need it: more spindle hours without an operator and a lower cost per part.
4th / 5th axisHIWIN RAB-200H tilting tableTurns the vertical into a 3+2 machine to machine several faces of the part in a single setup.
✓ Ø 200 mm faceplate on the table; requires 4th/5th-axis pre-wiring
Adds a rotary axis for cylindrical parts or for machining several faces without re-clamping.
✓ GSA CNC-170R / CNC-200R (worm gear) · GSA RCT-170R / RCT-200R (roller cam, backlash-free) · HIWIN RCV-250 (direct drive); optional manual tailstock
Prepares the machine for loading and unloading with a robot or cobot and for cell integration.
✓ automatic front door or side window (servo or pneumatic); EtherNet/IP network I/O as standard with Mitsubishi
More tools on the machine to chain part numbers without rebuilding the magazine by hand.
✓ 40 / 60 / 90 / 120 tools
Automatic work-offset setting and wear monitoring for safe unattended operation.
✓ OMP40 / OMP60 / RMP40 / RMP60 probes · TS-27R, Primo LTS or NC4 laser tool setting
Options according to the MEGA/TERA 2025 catalogue and the Micro Dynamics options list (Nov 2025); please confirm compatibility and lead time with Ferrotall.
Ferrotall service
- Installation and training Commissioning in your workshop and operator training by our technical team.
- In-house technical service Service team with specialist technicians and spare parts to keep your machine producing.
- Application advice We help you choose the machine and equipment to suit your parts and production.
- More than 45 years Machine tool distributor based in Monforte del Cid (Alicante).
