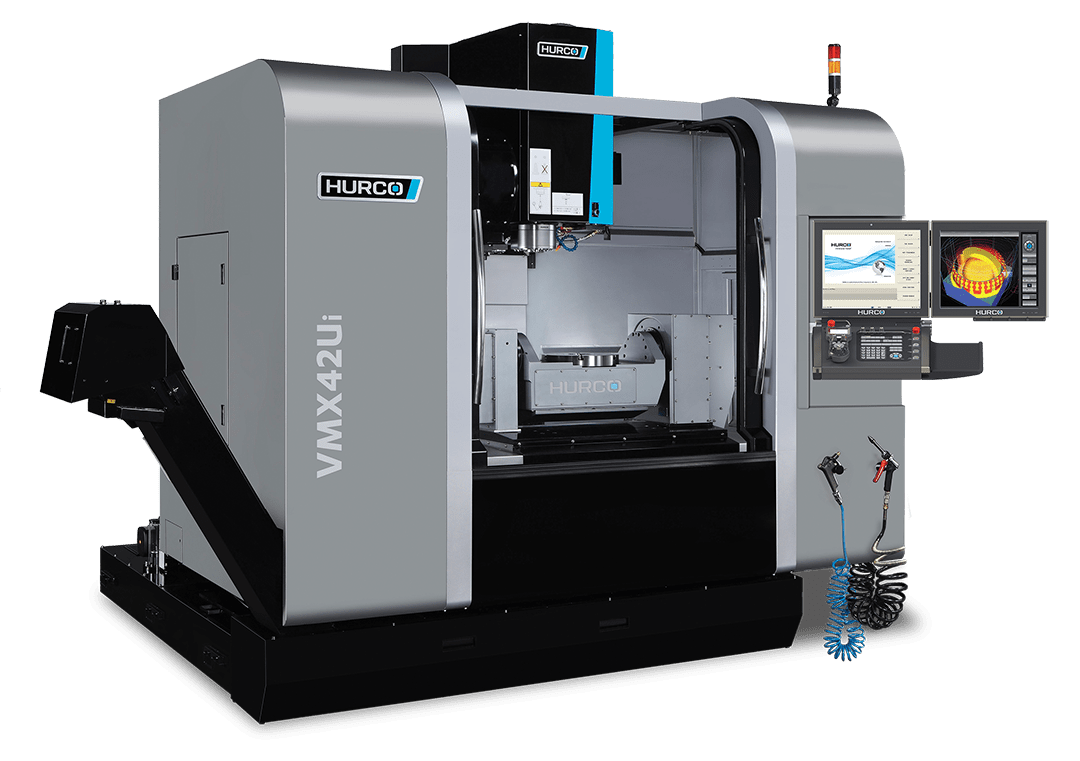

Machining centre Hurco VMX42Ui · Hurco VMX 42Ui: overview Hurco VMX 42Ui: overview
Machining centre Hurco VMX42Ui · Hurco MAX5 control with WinMax software (conversational programming) Hurco MAX5 control with WinMax software (conversational programming)
Machining centre Hurco VMX42Ui · Simultaneous 5-axis machining Simultaneous 5-axis machining
Machining centre Hurco VMX42Ui · Working area of a Hurco 5-axis machine Working area of a Hurco 5-axis machine
Machining centre Hurco VMX42Ui · Option: Renishaw workpiece probe in the spindle Option: Renishaw workpiece probe in the spindle
Machining centre Hurco VMX42Ui · ProCobots automation: part loading with a collaborative robot ProCobots automation: part loading with a collaborative robot
1 / 10

Hurco

Machining centre Hurco VMX42Ui

5 axes with a tilting-rotary table integrated into the machine (not added on to a 3-axis), leaving more usable space in Z. Travels of 1,067 × 610 × 520 mm and a 12,000 rpm SK40 spindle.

Ref. Hurco VMX42Ui

X/Y/Z travels
1,067 · 610 · 520 mm
Spindle
12,000 rpm SK40 · 239 Nm
Table · max. workpiece
Ø 398 mm (workpiece Ø 535) · 250 kg
Tools
40
Weight
7,200 kg
CNC control
Hurco WinMax · MAX5
Call +34 966 662 296

We reply within 24 working hours.

Technical data

Select a section to see the details:

SpeedTaperPower (100 % / 40 % DC)Torque (100 % / 40 % DC)Availability
12,000 rpm Most common SK4018 kW239 NmStandard
StandardIntegrated tilting-rotary table (A/C axes) SizeØ 398 mm; 6 T-slots of 14 mmMax. load250 kg

Interference envelope depending on axis position and table type: check that your part fits before requesting a quotation.

Max. workpieceØ 535 mm
Automatic tool changer40 tools
Max. toolmax. Ø 75 mm · max. length 300 mm · max. weight 7 kg
A axis (tilting)+30 / -110°
C axis (rotary)360°
Rapid traverse X/Y/Z (m/min)38 / 38 / 32
Rapid traverse A/C (rpm)25 / 25
Spindle nose to table distance90 - 610 mm
CNC controlHurco MAX5 with WinMax: conversational programming at the machine and ISO (NC) code
Space required (L × W × H, doors open, with control and conveyor)4,600 × 3,718 × 3,111 mm
Coolant tank510 l
Swarf evacuation (standard)scraper conveyor

Data from the manufacturer's catalogue; the final configuration is confirmed in the quotation.

Automation options

Ready to be automated from day one or whenever you need it: more spindle hours without an operator and a lower cost per part.

ProCobots: loading and unloading with a collaborative robotRobotProCobots: loading and unloading with a collaborative robot

Feeds the machine without an operator to extend shifts and run unattended. The robot is programmed from the MAX5 control itself (Automation Job Manager), with no need to program the robot directly.

✓ ProFeeder Cart / Tray with UR10e or EasyDesk 20 | 30 with UR20 / UR30 · Schunk gripper for parts up to 15 kg

Hurco also offers an open interface for integrating third-party robots and automation systems (AMF, Erowa, Lang Technik, Robojob, Universal Robots…). Please confirm the configuration for this model with Ferrotall.

Description

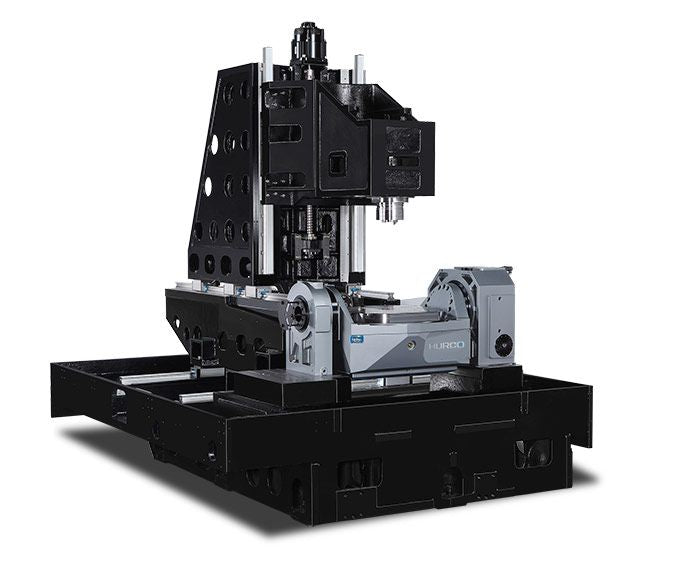

The efficient design of Hurco 5-axis machining centres with a tilting rotary table is a key benefit to consider: we use an integrated tilting rotary table instead of simply attaching a tilting rotary table to a 3-axis machining centre and passing it off as a 5-axis machine. The integrated tilting rotary table design provides more clearance in the Z axis than other brands.
