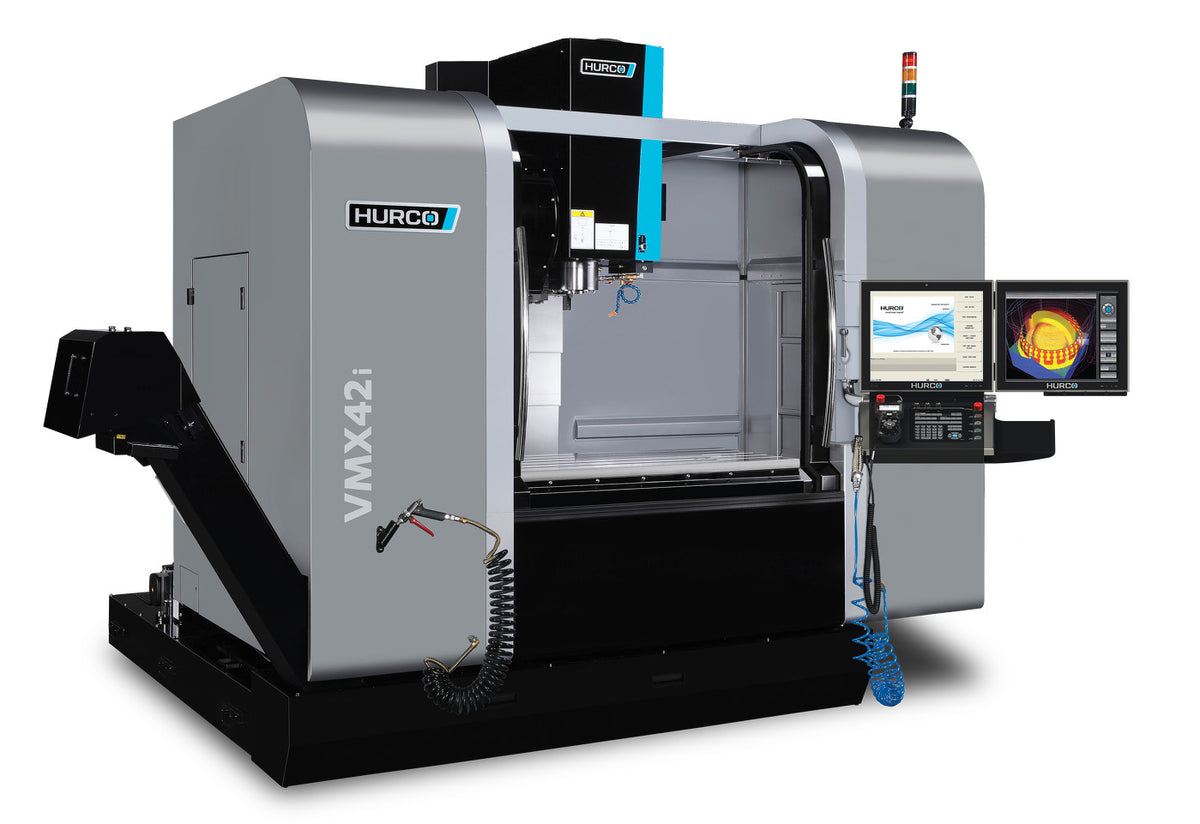

Machining centre Hurco VMX 42i · Hurco VMX 42i: overview Hurco VMX 42i: overview
Machining centre Hurco VMX 42i · Hurco MAX5 control with WinMax software (conversational programming) Hurco MAX5 control with WinMax software (conversational programming)
Machining centre Hurco VMX 42i · Milling on a Hurco machine Milling on a Hurco machine
Machining centre Hurco VMX 42i · Option: Renishaw workpiece probe in the spindle Option: Renishaw workpiece probe in the spindle
Machining centre Hurco VMX 42i · Option: CNC rotary table (4th axis) Option: CNC rotary table (4th axis)
Machining centre Hurco VMX 42i · Option: production package (paper band filter and 20 bar through-tool coolant) Option: production package (paper band filter and 20 bar through-tool coolant)
Machining centre Hurco VMX 42i · ProCobots automation: part loading with a collaborative robot ProCobots automation: part loading with a collaborative robot
1 / 12

Hurco

Machining centre Hurco VMX 42i

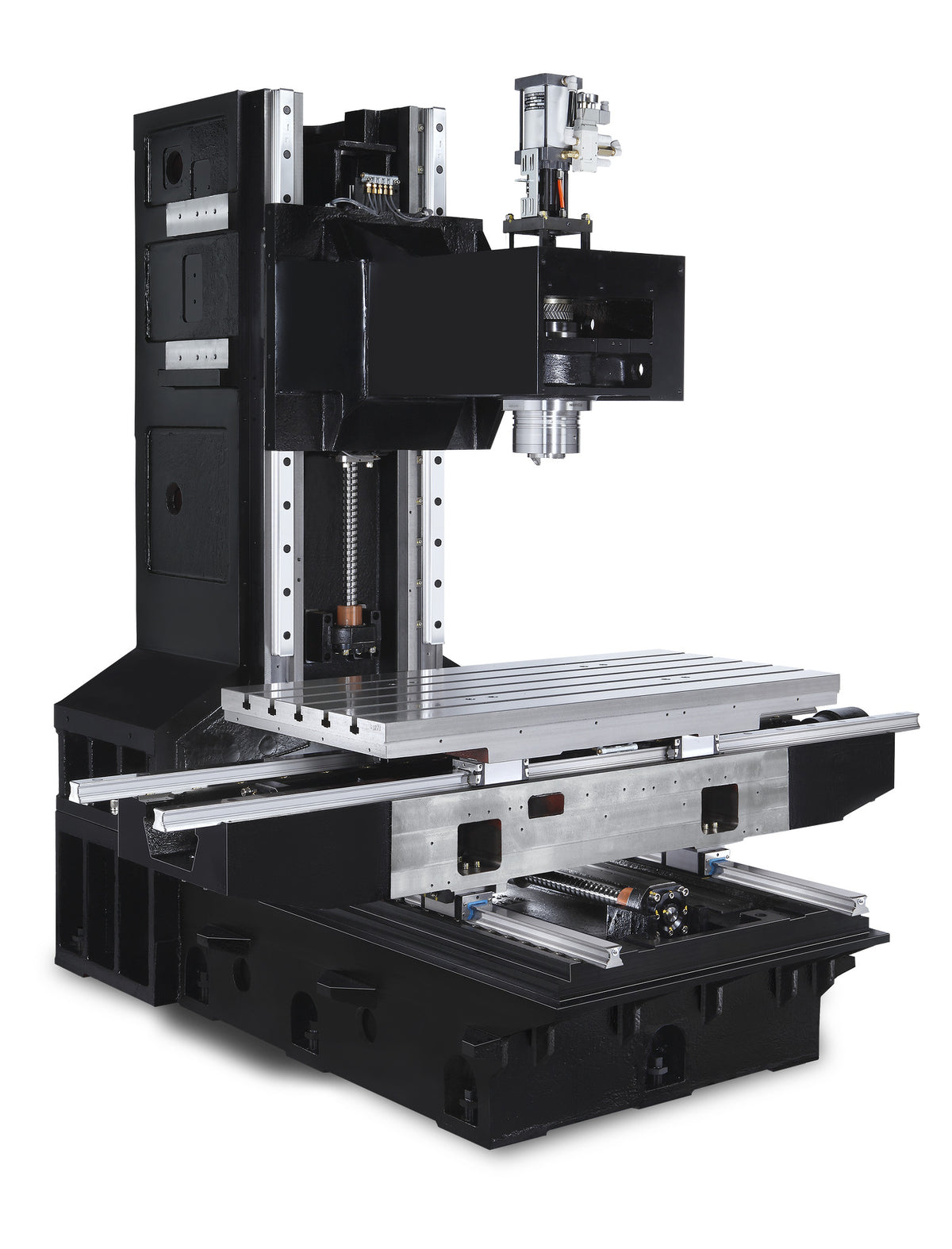

High-performance VMX vertical with cast-iron bed and 12,000 rpm SK40 spindle: 1,067 × 610 × 610 mm for medium and large parts, with the WinMax control.

Ref. Hurco VMX42i

X/Y/Z travels
1,067 · 610 · 610 mm
Spindle
12,000 rpm SK40 · 239 Nm
Table · max. workpiece
1,270 × 610 mm · 1,750 kg
Tools
30 (option 40)
Weight
6,850 kg
CNC control
Hurco WinMax · MAX5
Call +34 966 662 296

We reply within 24 working hours.

Technical data

Select a section to see the details:

SpeedTaperPower (100 % / 40 % DC)Torque (100 % / 40 % DC)Availability
12,000 rpm Most common SK4018 kW239 NmStandard
StandardWorktable Size1,270 × 610 mm; 5 T-slots of 18 mm, 100 mm pitchMax. load1,750 kg
CNC rotary table for 4th / 5th axis (MR, GT or TT)
OptionCNC rotary table for 4th / 5th axis (MR, GT or TT) Sizeplates Ø 128 to 320 mm
Automatic tool changer (ATC)30 (option 40) tools
Max. toolmax. Ø 80 / 76 mm · max. length 300 mm · max. weight 7 kg
Rapid traverse X/Y/Z (m/min)38 / 38 / 32
Spindle nose to table distance152 - 762 mm
CNC controlHurco MAX5 with WinMax: conversational programming at the machine and ISO (NC) code
Space required (L × W × H, doors open, including control and conveyor)4,572 × 3,708 × 2,945 mm
Coolant tank484 l
Chip evacuation (standard)scraper conveyor

Data from the manufacturer's catalogue; the final configuration is confirmed in the quotation.

Automation options

Ready to be automated from day one or whenever you need it: more spindle hours without an operator and a lower cost per part.

ProCobots: loading and unloading with a collaborative robotRobotProCobots: loading and unloading with a collaborative robot

Feeds the machine without an operator to extend shifts and run unattended. The robot is programmed from the MAX5 control itself (Automation Job Manager), with no need to program on the robot.

✓ ProFeeder Cart / Tray with UR10e or EasyDesk 20 | 30 with UR20 / UR30 · Schunk gripper for parts up to 15 kg

Hurco also offers an open interface for integrating third-party robots and automation systems (AMF, Erowa, Lang Technik, Robojob, Universal Robots…). Please confirm the configuration for this model with Ferrotall.

Ferrotall service

  • Installation and training Commissioning in your workshop and operator training by our technical team.
  • In-house technical service Service team with specialist technicians and spare parts to keep your machine producing.
  • Application advice We help you choose the machine and equipment to suit your parts and production.
  • More than 45 years Machine tool distributor based in Monforte del Cid (Alicante).
