5-axis machining centre Hurco VM 10UHSiPlus
5-axis machining centre Hurco VM 10UHSiPlus

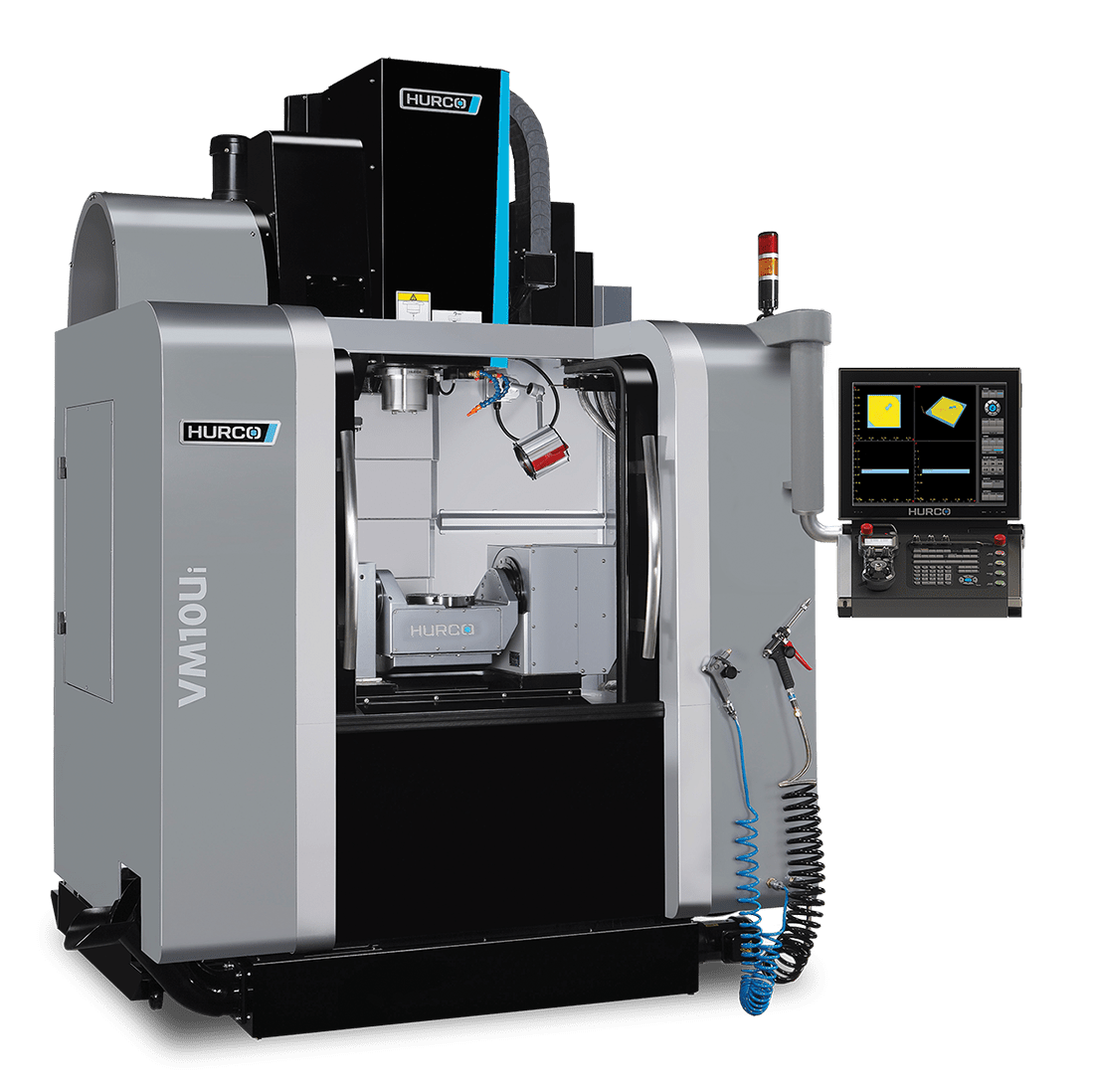

5-axis machining centre Hurco VM 10UHSiPlus · Hurco VM 10UHSiPlus: overview Hurco VM 10UHSiPlus: overview
5-axis machining centre Hurco VM 10UHSiPlus · Hurco MAX5 control with WinMax software (conversational programming) Hurco MAX5 control with WinMax software (conversational programming)
5-axis machining centre Hurco VM 10UHSiPlus · Simultaneous 5-axis machining Simultaneous 5-axis machining
5-axis machining centre Hurco VM 10UHSiPlus · Working area of a Hurco 5-axis machine Working area of a Hurco 5-axis machine
5-axis machining centre Hurco VM 10UHSiPlus · Option: Renishaw workpiece probe in the spindle Option: Renishaw workpiece probe in the spindle
5-axis machining centre Hurco VM 10UHSiPlus · ProCobots automation: part loading with a collaborative robot ProCobots automation: part loading with a collaborative robot
1 / 10

Hurco

5-axis machining centre Hurco VM 10UHSiPlus

Compact high-speed 5-axis machine: integrated tilting rotary table (A +30/-110°, C 360°) and a 20,000 rpm HSK40 spindle (30,000 optional) for small, complex parts.

Ref. Hurco VM10UHSi

X/Y/Z travels
533 · 406 · 483 mm
Spindle
20,000 rpm HSK40 · 7.2 Nm (option 30,000 rpm)
Table · max. workpiece
Ø 198 mm · 150 kg
Tools
20
Weight
3,150 kg
CNC control
Hurco WinMax · MAX5
Call +34 966 662 296

We reply within 24 working hours.

Technical data

Select a section to see the details:

SpeedTaperPower (100 % / 40 % DC)Torque (100 % / 40 % DC)Availability
20,000 rpm Most common HSK409 kW7.2 NmStandard
30,000 rpm HSK40Optional
StandardIntegrated tilting rotary table (A/C axes) SizeØ 198 mm; 6 T-slots of 10 mmMax. load150 kg
Automatic tool changer (ATC)20 tools
Max. toolmax. Ø 80 mm (125 mm with empty adjacent pockets) · max. length 250 mm · max. weight 3 kg
A axis (tilting)+30 / -110°
C axis (rotary)360°
Rapid traverse X/Y/Z (m/min)28 / 28 / 28
Rapid traverse A/C (rpm)25 / 25
Axis thrust X/Y/Z (kN)7.8 / 7.8 / 12.7
Spindle nose to table distance36 - 519 mm
Tool change (tool-to-tool / chip-to-chip)1.5 s / 5.5 s
Positioning accuracy / repeatability (VDI/DGQ 3441)0.01 / 0.005 mm
CNC controlHurco MAX5 with WinMax: conversational programming at the machine and ISO (NC) code
Coolant tank62 l
Swarf evacuation (standard)auger swarf conveyor
Electrical connection17 kVA / 40 A / 400 V

Data from the manufacturer's catalogue; the final configuration is confirmed in the quotation.

Automation options

Ready to be automated from day one or whenever you need it: more spindle hours without an operator and a lower cost per part.

ProCobots: loading and unloading with a collaborative robotRobotProCobots: loading and unloading with a collaborative robot

Feeds the machine without an operator to extend shifts and run unattended. The robot is programmed from the MAX5 control itself (Automation Job Manager), with no need to program on the robot.

✓ ProFeeder Cart / Tray with UR10e or EasyDesk 20 | 30 with UR20 / UR30 · Schunk gripper for parts up to 15 kg

Hurco also offers an open interface for integrating third-party robots and automation systems (AMF, Erowa, Lang Technik, Robojob, Universal Robots…). Please confirm the configuration for this model with Ferrotall.

Ferrotall service

  • Installation and training Commissioning in your workshop and operator training by our technical team.
  • In-house service engineers Service team with specialist technicians and spare parts to keep your machine in production.
  • Application advice We help you choose the machine and equipment to suit your parts and production.
  • More than 45 years Machine tool distributor based in Monforte del Cid (Alicante).
