Machining centre Hurco VM 10Ui Plus
Machining centre Hurco VM 10Ui Plus

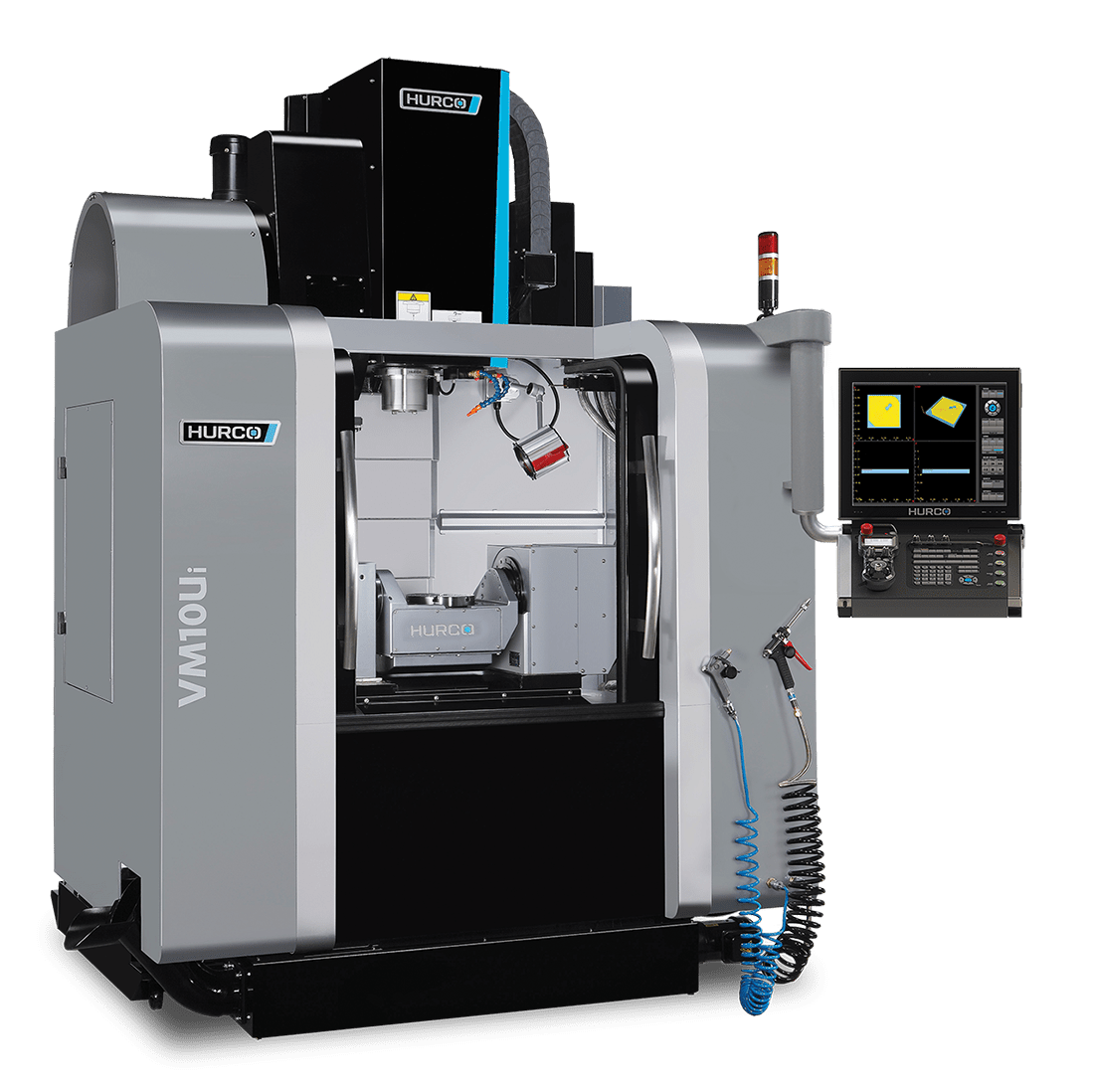

Machining centre Hurco VM 10Ui Plus · Hurco VM 10Ui Plus: overview Hurco VM 10Ui Plus: overview
Machining centre Hurco VM 10Ui Plus · Hurco MAX5 control with WinMax software (conversational programming) Hurco MAX5 control with WinMax software (conversational programming)
Machining centre Hurco VM 10Ui Plus · Simultaneous 5-axis machining Simultaneous 5-axis machining
Machining centre Hurco VM 10Ui Plus · Working area of a Hurco 5-axis machine Working area of a Hurco 5-axis machine
Machining centre Hurco VM 10Ui Plus · Option: Renishaw workpiece probe in the spindle Option: Renishaw workpiece probe in the spindle
Machining centre Hurco VM 10Ui Plus · ProCobots automation: part loading with a collaborative robot ProCobots automation: part loading with a collaborative robot
1 / 10

Hurco

Machining centre Hurco VM 10Ui Plus

5 axes with a tilting-rotary table integrated into the machine (not added on to a 3-axis), leaving more usable space in Z. Travels of 533 × 406 × 483 mm and a 12,000 rpm SK40 spindle.

Ref. Hurco VM10Ui Plus

X/Y/Z travels
533 · 406 · 483 mm
Spindle
12,000 rpm SK40 · 61 Nm
Table · max. workpiece
Ø 198 mm (workpiece Ø 300) · 150 kg
Tools
24
Weight
3,510 kg
CNC control
Hurco WinMax · MAX5
Call +34 966 662 296

We reply within 24 working hours.

Technical data

Select a section to see the details:

SpeedTaperPower (100 % / 40 % DC)Torque (100 % / 40 % DC)Availability
12,000 rpm Most common SK4011 kW61 NmStandard
StandardIntegrated tilting-rotary table (A/C axes) SizeØ 198 mm; 6 T-slots of 10 mmMax. load150 kg

Interference envelope depending on axis position and table type: check that your part fits before requesting a quotation.

Max. workpieceØ 300 mm
Automatic tool changer24 tools
Max. toolmax. Ø 80 mm · max. length 250 mm · max. weight 7 kg
A axis (tilting)+30 / -110°
C axis (rotary)360°
Rapid traverse X/Y/Z (m/min)28 / 28 / 28
Rapid traverse A/C (rpm)25 / 25
Spindle nose to table distance36 - 519 mm
CNC controlHurco MAX5 with WinMax: conversational programming at the machine and ISO (NC) code
Space required (L × W × H, doors open, with control and conveyor)3,264 × 3,379 × 2,725 mm
Coolant tank108 l
Chip evacuation (standard)chip auger

Data from the manufacturer's catalogue; the final configuration is confirmed in the quotation.

Automation options

Ready to be automated from day one or whenever you need it: more spindle hours without an operator and a lower cost per part.

ProCobots: loading and unloading with a collaborative robotRobotProCobots: loading and unloading with a collaborative robot

Feeds the machine without an operator to extend shifts and run unattended. The robot is programmed from the MAX5 control itself (Automation Job Manager), with no need to program the robot directly.

✓ ProFeeder Cart / Tray with UR10e or EasyDesk 20 | 30 with UR20 / UR30 · Schunk gripper for parts up to 15 kg

Hurco also offers an open interface for integrating third-party robots and automation systems (AMF, Erowa, Lang Technik, Robojob, Universal Robots…). Please confirm the configuration for this model with Ferrotall.

Description

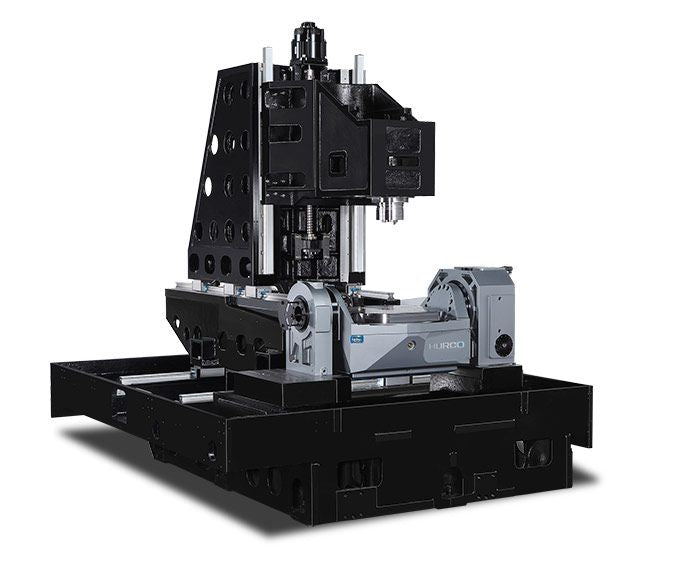

The efficient design of Hurco 5-axis machining centres with a tilting rotary table is a key benefit to consider: we use an integrated tilting rotary table instead of simply attaching a tilting rotary table to a 3-axis machining centre and passing it off as a 5-axis machine. The integrated tilting rotary table design provides more clearance in the Z axis than other brands.

Ferrotall service

  • Installation and training Commissioning in your workshop and operator training by our technical team.
  • In-house technical service Service team with specialist technicians and spare parts to keep your machine producing.
  • Application advice We help you choose the machine and equipment to suit your parts and production.
  • More than 45 years Machine tool distributor based in Monforte del Cid (Alicante).
