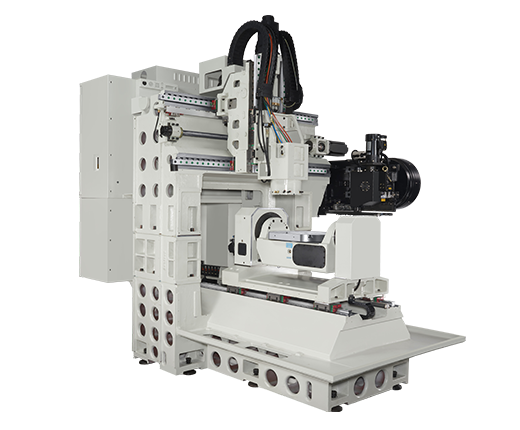

Estructura Centro de Mecanizado Takumi U600
Centro de Mecanizado doble columna Takumi U600

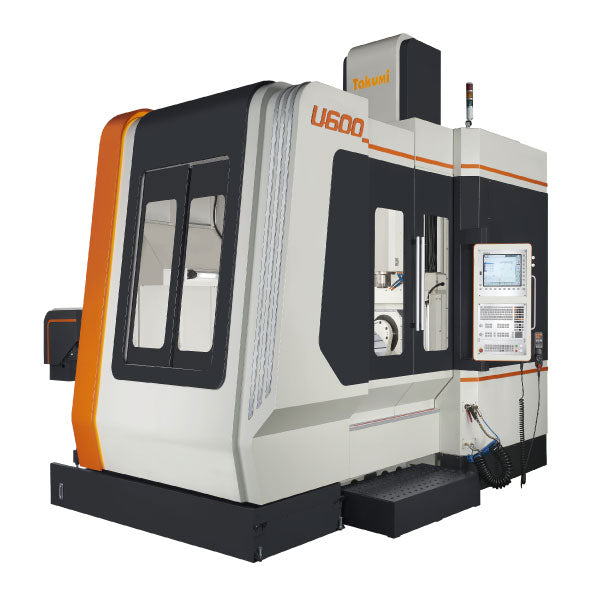

5-axis machining centre Takumi U600 · Overview Overview

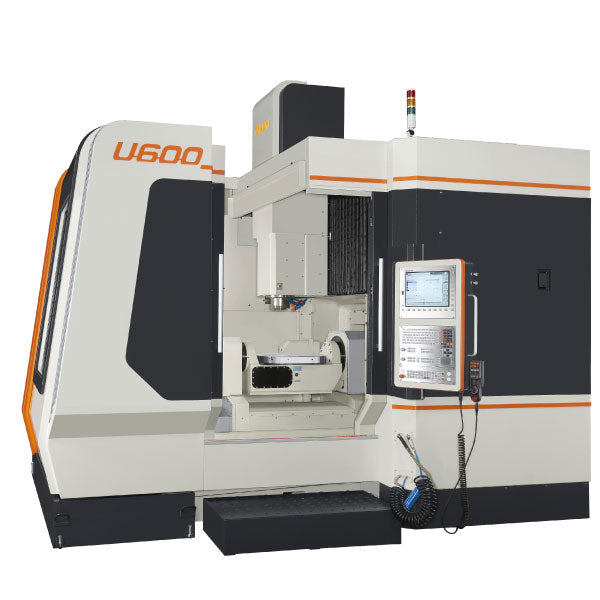

5-axis machining centre Takumi U600 · Front view Front view
5-axis machining centre Takumi U600 · Direct-drive spindle Direct-drive spindle
5-axis machining centre Takumi U600 · Optional motor spindle Optional motor spindle
5-axis machining centre Takumi U600 · Heidenhain TNC7 control Heidenhain TNC7 control
1 / 12

Takumi

5-axis machining centre Takumi U600

Takumi's all-round 5-axis machine: rigid gantry, Ø 600 mm tilting rotary table for 500 kg and crane loading.

Ref. TAKUMI U600

X/Y/Z travels
890 · 1,050 · 580 mm
Spindle
15,000 rpm SK40 BigPlus · 89.4 Nm
Table · max. workpiece
Ø 600 mm · 500 kg
Tools
30
Weight
14,000 kg
CNC control (your choice)
FANUC · SIEMENS · HEIDENHAIN
Call +34 966 662 296

We reply within 24 working hours.

Technical data

Select a section to see the details:

SpeedTaperPower (100 % / 40 % DC)Torque (100 % / 40 % DC)Availability
15,000 rpm Most common SK40 BigPlus / BBT40 o HSK63-A10 / 14 kW63.7 / 89.4 NmStandard
15,000 rpm SK40 BigPlus / BBT40 / HSK63-A20 / 34 kW82 / 139.6 NmOptional
20,000 rpm HSK63-A25 / 35 kW83.2 / 116.5 NmOptional
24,000 rpm HSK63-A30 / 45 kW29 / 43.5 NmOptional
StandardTilting rotary table (A/C axes) SizeØ 600 mm; 5 T-slots of 14 mm, 80 mm pitchMax. load500 kg
Double-arm magazine30 tools · max. Ø 75 mm (150 with empty adjacent pockets) · length 300 mm · 7 kg
A axis (tilting)+30° / -110°, 11.1 rpm (the 2025 brochure states 25 rpm)
C axis (rotary)360°, 25 rpm (the 2025 brochure states 33 rpm)
Rapid traverse X/Y/Z (m/min)36
Working feed rate (m/min)20
Spindle-to-table distance120 - 700 mm
CNC controlHEIDENHAIN TNC7
Through-spindle coolant30 bar
Electrical power80 kVA / 160 A
Dimensions (W × L × H)4,781 × 4,388 × 3,300 mm

Data from the manufacturer's catalogue; the final configuration is confirmed in the quotation.

Ferrotall service

  • Installation and training Commissioning in your workshop and operator training by our technical team.
  • In-house technical service Service team with specialist technicians and spare parts to keep your machine producing.
  • Application advice We help you choose the machine and equipment to suit your parts and production.
  • More than 45 years Machine tool distributor based in Monforte del Cid (Alicante).
